NSM46211DW6T1G - Dual NPN Transistors

NSM46211DW6T1G Description

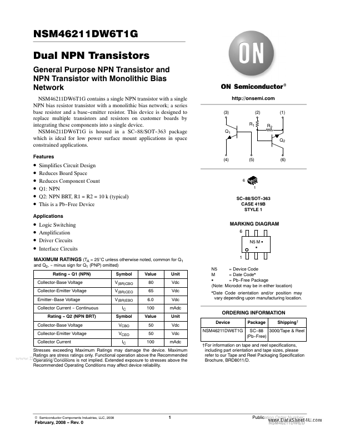

NSM46211DW6T1G Dual NPN Transistors General Purpose NPN Transistor and NPN Transistor with Monolithic Bias Network NSM46211DW6T1G contains a single NP.

NSM46211DW6T1G Features

* http://onsemi. com (3) R1 Q1 Q2 (2) R2 (1)
* ăSimplifies Circuit Design
* ăReduces Board Space
* ăReduces Component Count
* ăQ1: NPN
* ăQ2: NPN BRT, R1 = R2 = 10 k (typical)
