NSV45025AZ Datasheet - ON Semiconductor

NSV45025AZ - Constant Current Regulator & LED Driver

NSI45025AZ, NSV45025AZ Constant Current Regulator & LED Driver 45 V, 25 mA + 10%, 1.4 W Package The linear constant current regulator (CCR) is a simple, economical and robust device designed to provide a cost effective solution for regulating current in LEDs (similar to Constant Current Diode, CCD).

The CCR is based on Self-Biased Transistor (SBT) technology and regulates current over a wide voltage range.

It is designed with a negative temperature coefficient to protect LEDs from ther

NSV45025AZ Features

* Robust Power Package: 1.4 Watts

* Wide Operating Voltage Range & Immediate Turn-On

* Voltage Surge Suppressing

* Protecting LEDs

* SBT (Self

* Biased Transistor) Technology

* Negative Temperature Coefficient

* NSV Prefix for Automotive

NSV45025AZ-ONSemiconductor.pdf

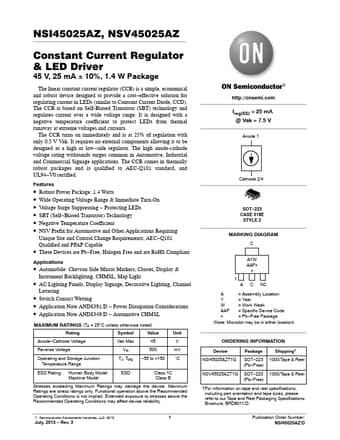

Preview of NSV45025AZ PDF
NSV45025AZ Datasheet Preview Page 2 NSV45025AZ Datasheet Preview Page 3

Datasheet Details

Part number:

NSV45025AZ

Manufacturer:

ON Semiconductor ↗

File Size:

171.98 KB

Description:

Constant current regulator & led driver.
