NSV45090JDT4G - Adjustable Constant Current Regulator & LED Driver

Datasheet Summary

Features

  • Robust Power Package: 2.7 Watts.
  • Adjustable up to 160 mA.
  • Wide Operating Voltage Range.
  • Immediate Turn-On.
  • Voltage Surge Suppressing.
  • Protecting LEDs.
  • UL94.
  • V0 Certified.
  • SBT (Self.
  • Biased Transistor) Technology.
  • Negative Temperature Coefficient.
  • Eliminates Additional Regulation.
  • NSV Prefix for Automotive and Other.

📥 Download Datasheet

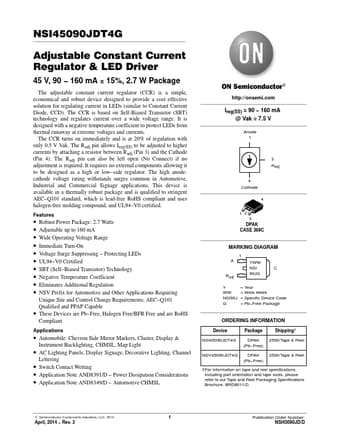

Datasheet preview – NSV45090JDT4G

Datasheet Details

Part number NSV45090JDT4G
Manufacturer ON Semiconductor
File Size 157.09 KB
Description Adjustable Constant Current Regulator & LED Driver
Datasheet download datasheet NSV45090JDT4G Datasheet
Additional preview pages of the NSV45090JDT4G datasheet.

📁 Similar Datasheet

  • NSVA253 - SAW FILTER (New Japan Radio)
  • NSVA254 - SAW FILTER (New Japan Radio)
  • NSVA276 - SAW FILTER (New Japan Radio)
  • NSVA277 - SAW FILTER (New Japan Radio)
  • NSVA279 - SAW FILTER (New Japan Radio)
  • NSVA288 - JRC SAW FILTER (ETC)
  • NSVA288 - SAW FILTER (New Japan Radio)
  • NSVA300 - SAW FILTER (New Japan Radio)
  • NSVA301 - SAW FILTER (New Japan Radio)
  • NSVA321 - SAW FILTER (New Japan Radio)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
NSI45090JDT4G Adjustable Constant Current Regulator & LED Driver 45 V, 90 − 160 mA + 15%, 2.7 W Package The adjustable constant current regulator (CCR) is a simple, economical and robust device designed to provide a cost effective solution for regulating current in LEDs (similar to Constant Current Diode, CCD). The CCR is based on Self-Biased Transistor (SBT) technology and regulates current over a wide voltage range. It is designed with a negative temperature coefficient to protect LEDs from thermal runaway at extreme voltages and currents. The CCR turns on immediately and is at 20% of regulation with only 0.5 V Vak. The Radj pin allows Ireg(SS) to be adjusted to higher currents by attaching a resistor between Radj (Pin 3) and the Cathode (Pin 4).
