NSZ5V6V2 - Zener Voltage Regulators

ON Semiconductor

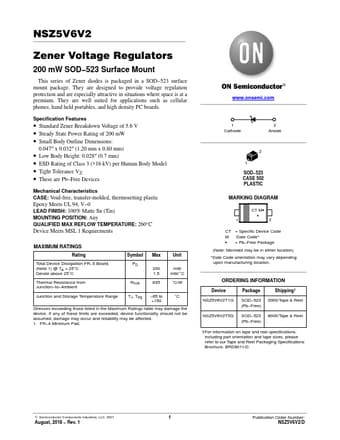

NSZ5V6V2 Datasheet Preview — Preview of NSZ5V6V2 PDF

Datasheet Details

Part number	NSZ5V6V2
Manufacturer	ON Semiconductor ↗
File Size	128.18 KB
Description	Zener Voltage Regulators
Datasheet	NSZ5V6V2-ONSemiconductor.pdf

NSZ5V6V2 Product details

Description

SOD 523 1.20x0.80x0.60 Electronic versions are uncontrolled except when accessed directly from the Document Repository.Printed versions are uncontrolled except when stamped “CONTROLLED COPY” in red.PAGE 1 OF 1 onsemi and are trademarks of Semiconductor Components Industries, LLC dba onsemi or its subsidiaries in the United States and/or other countries.onsemi reserves the right to make changes without further notice to any products herein.onsemi makes no warranty, representation

Features

Standard Zener Breakdown Voltage of 5.6 V.
Steady State Power Rating of 200 mW.
Small Body Outline Dimensions: 0.047″ x 0.032″ (1.20 mm x 0.80 mm).
Low Body Height: 0.028″ (0.7 mm).
ESD Rating of Class 3 (>16 kV) per Human Body Model.
Tight Tolerance VZ.
These are Pb.
Free Devices Mechanical Characteristics CASE: Void-free, transfer-molded, thermosetting plastic Epoxy Meets UL 94, V.
0 LEAD FINISH: 100% Matte Sn (Tin).
