NTD600N80S3Z - 800V 8A N-Channel Power MOSFET

ON Semiconductor

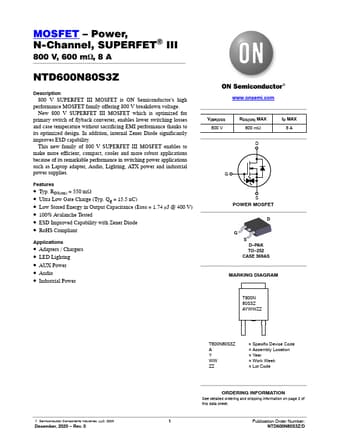

NTD600N80S3Z Datasheet Preview — Preview of NTD600N80S3Z PDF

Datasheet Details

Part number	NTD600N80S3Z
Manufacturer	ON Semiconductor ↗
File Size	253.67 KB
Description	800V 8A N-Channel Power MOSFET
Datasheet	NTD600N80S3Z-ONSemiconductor.pdf

NTD600N80S3Z Product details

Description

800 V SUPERFET III MOSFET is ON Semiconductor’s high performance MOSFET family offering 800 V breakdown voltage.New 800 V SUPERFET III MOSFET which is optimized for primary switch of flyback converter, enables lower switching losses and case temperature without sacrificing EMI performance thanks to its optimized design.In addition, internal Zener Diode significantly improves ESD capability.This new family of 800 V SUPERFET III MOSFET enables to make more efficient, compact, cooler and more ro

Features

Typ. RDS(on) = 550 mW.
Ultra Low Gate Charge (Typ. Qg = 15.5 nC).
Low Stored Energy in Output Capacitance (Eoss = 1.74 mJ @ 400 V).
100% Avalanche Tested.
ESD Improved Capability with Zener Diode.
RoHS Compliant.
