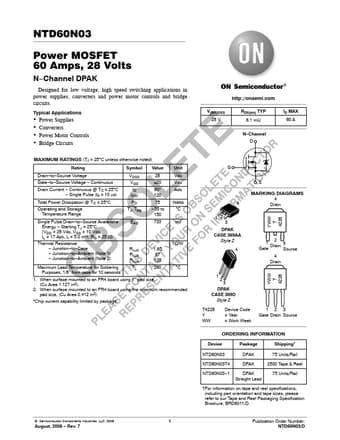

NTD60N03
Power MOSFET 60 Amps, 28 Volts
N- Channel DPAK
Designed for low voltage, high speed switching applications in power supplies, converters and power motor controls and bridge circuits.
Typical Applications
- Power Supplies
- Converters
- Power Motor Controls
- Bridge Circuits
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Rating
Symbol Value Unit
Drain- to- Source Voltage
Gate- to- Source Voltage
- Continuous Drain Current
- Continuous @ TC = 25°C Drain Current
- Single Pulse (tp = 10 ms) Total Power Dissipation @ TC = 25°C Operating and Storage
Temperature Range
VDSS VGS ID IDM
PD TJ, Tstg
28 ±20 60- 120
- 55 to
Vdc Vdc Adc
Watts °C
Single Pulse Drain- to- Source Avalanche Energy
- Starting TJ = 25°C (VDD = 28 Vdc, VGS = 10 Vdc, IL = 17 Apk, L = 5.0 m H, RG = 25 W)
Thermal Resistance
- Junction- to- Case
- Junction- to- Ambient (Note 1)
- Junction- to- Ambient (Note 2)
Maximum Lead Temperature for Soldering Purposes, 1/8″ from case for 10 seconds
Rq JC Rq JA Rq...
