NTLJS4114N, N-Channel Power MOSFET

NTLJS4114N MOSFET * Power, Single, N-Channel, mCool, WDFN, 2X2 mm 30 V, 7.8 A .

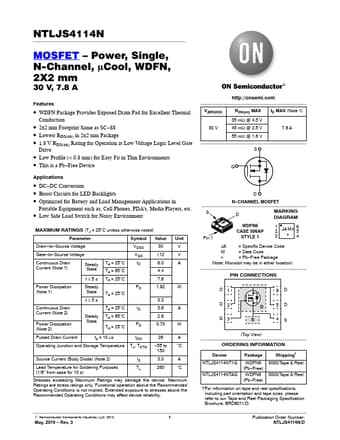

datasheet Preview Page 1 from Datasheet4u.com

NTLJS4114N_ONSemiconductor.pdf

NTLJS4114N Datasheet Preview — Preview of NTLJS4114N PDF

Datasheet Details

Part number:

NTLJS4114N

Manufacturer:

ON Semiconductor ↗

File Size:

206.64 KB

Description:

N-Channel Power MOSFET

Features

* WDFN Package Provides Exposed Drain Pad for Excellent Thermal Conduction
* 2x2 mm Footprint Same as SC
* 88
* Lowest RDS(on) in 2x2 mm Package
* 1.8 V RDS(on) Rating for Operation at Low Voltage Logic Level Gate Drive
* Low Profile (< 0.8 mm) for Easy

Applications

* DC
* DC Conversion
* Boost Circuits for LED Backlights
* Optimized for Battery and Load Management Applications in Portable Equipment such as, Cell Phones, PDA’s, Media Players, etc.
* Low Side Load Switch for Noisy Environment MAXIMUM RATINGS (TJ = 25°C unle
