NTTFS1D4N04XM

N-Channel Power MOSFET

ON Semiconductor

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	onsemi	NTTFS1D4N04XMTAG	MOSFET - POWER, SINGLEN-CHANNEL,	DigiKey	0	0	$0	🛒 Buy Now

Download Datasheet (210.85 KB)

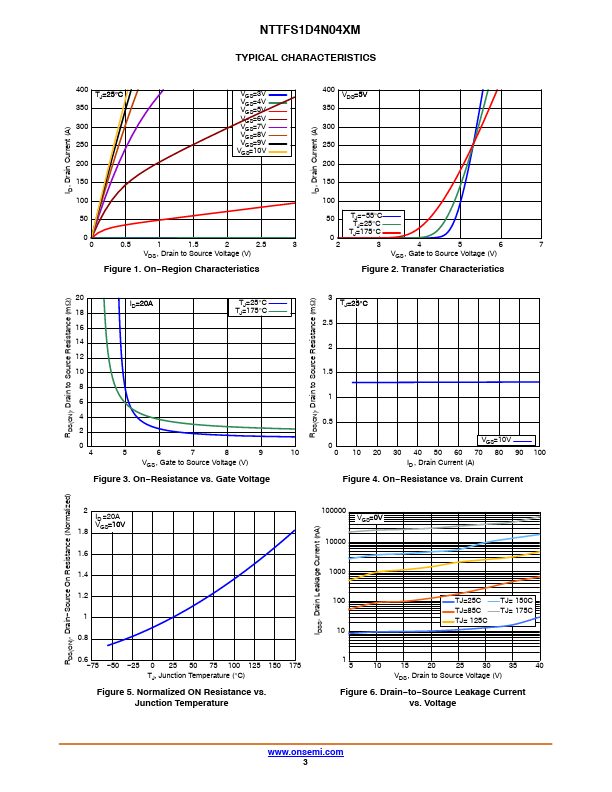

NTTFS1D4N04XM Datasheet Preview — Preview of NTTFS1D4N04XM Datasheet

Datasheet Details

Part number:

NTTFS1D4N04XM

Manufacturer:

ON Semiconductor ↗

File Size:

210.85 KB

Description:

N-channel power mosfet.
MOSFET - Power, Single N-Channel, STD Gate, m8FL 40 V, 1.43 mW, 178 A NTTFS1D4N04XM Features * Low .
RDS(on) to Minimize Conduction Losses * Low Capacitance to Minimize Driver Losses * Small Footprint .

✔ NTTFS1D4N04XM Features

Low RDS(on) to Minimize Conduction Losses
Low Capacitance to Minimize Driver Losses
Small Footprint (3.3 x 3.3 mm) for Compact Design
These Devices are Pb
Free, H

✔ NTTFS1D4N04XM Application

Motor Drive
Battery Protection
Synchronous Rectification MAXIMUM RATINGS (TJ = 25°C unless otherwise
