NUD4700 - LED Shunt

ON Semiconductor

The NUD4700 by ON Semiconductor is a LED Shunt. Below is the official datasheet preview.

📥 Download Datasheet

NUD4700 LED Shunt by ON Semiconductor - Datasheet Preview — Official preview page of the **NUD4700** LED Shunt datasheet (ON Semiconductor).

Datasheet Details

Part number	NUD4700
Manufacturer	ON Semiconductor
File Size	223.08 KB
Description	LED Shunt
Datasheet	NUD4700_ONSemiconductor.pdf

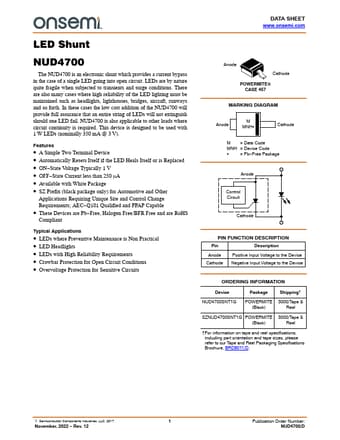

Additional preview pages of the NUD4700 datasheet.

NUD4700 Product details

Description

Pin Description Anode Cathode Positive Input Voltage to the Device Negative Input Voltage to the Device ORDERING INFORMATION Device NUD4700SNT1G Package Shipping† POWERMITE 3000/Tape & (Black) Reel SZNUD4700SNT1G POWERMITE 3000/Tape & (Black) Reel †For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D.© Semiconductor Components Industries, LLC, 2017 1 November,

Features

A Simple Two Terminal Device.
Automatically Resets Itself if the LED Heals Itself or is Replaced.
ON.
State Voltage Typically 1 V.
OFF.
State Current less than 250 mA.
Available with White Package.
SZ Prefix (black package only) for Automotive and Other.
