NV24C16LV - 16-Kb CMOS Serial EEPROM

ON Semiconductor

📥 Download Datasheet

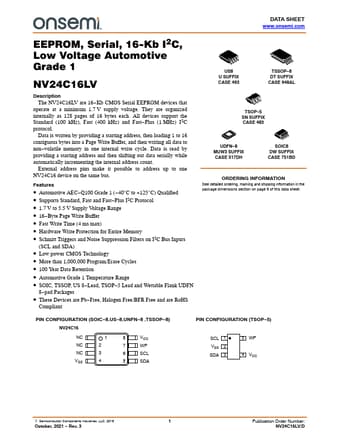

NV24C16LV Datasheet Preview — Preview of NV24C16LV PDF

Datasheet Details

Part number: NV24C16LV
Manufacturer: ON Semiconductor ↗
File Size: 466.56 KB
Datasheet: NV24C16LV-ONSemiconductor.pdf
Description: 16-Kb CMOS Serial EEPROM

NV24C16LV Product details

Description

The NV24C16LV are 16 Kb CMOS Serial EEPROM devices that operate at a minimum 1.7 V supply voltage.They are organized internally as 128 pages of 16 bytes each.All devices support the Standard (100 kHz), Fast (400 kHz) and Fast Plus (1 MHz) I2C protocol. volatile memory in one internal write cycle.

Features

Automotive AEC.
Q100 Grade 1 (.
40°C to +125°C) Qualified.
Supports Standard, Fast and Fast.
Plus I2C Protocol.
1.7 V to 5.5 V Supply Voltage Range.
16.
Byte Page Write Buffer.
Fast Write Time (4 ms max).
Hardware Write Protection for Entire Memory.
Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA).
Low power CMOS Technology.
More than 1,000,000 Program/Erase.
