NV25320 - EEPROM

This page provides the datasheet information for the NV25320, a member of the NV25080 EEPROM family.

Datasheet Summary

Description

NV25080, NV25160, NV25320, NV25640 are a EERPOM Serial 8/16/32/64

Kb SPI Automotive Grade 0 devices internally organized as 1K/2K/4K/8Kx8 bits.

Features

  • a 32.
  • byte page write buffer and supports the Serial Peripheral Interface (SPI) protocol. The device is enabled through a Chip Select (CS) input. In addition, the required bus signals are clock input (SCK), data input (SI) and data output (SO) lines. The HOLD input may be used to pause any serial communication with the NV25xxx device. The device features software and hardware write protection, including partial as well as full array protection. Byte Level On.
  • Chip ECC (Error Correc.

📥 Download Datasheet

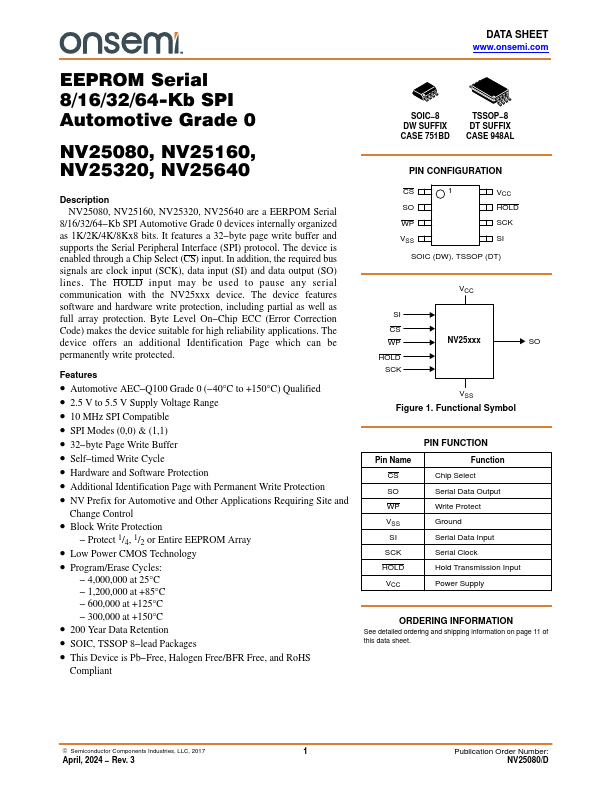

Datasheet preview – NV25320

Datasheet Details

Part number NV25320
Manufacturer ON Semiconductor
File Size 206.94 KB
Description EEPROM
Datasheet download datasheet NV25320 Datasheet

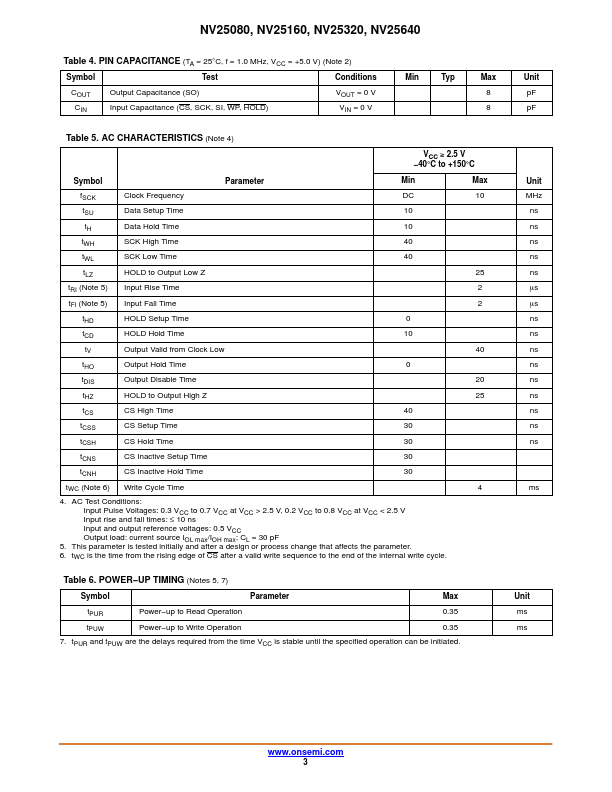

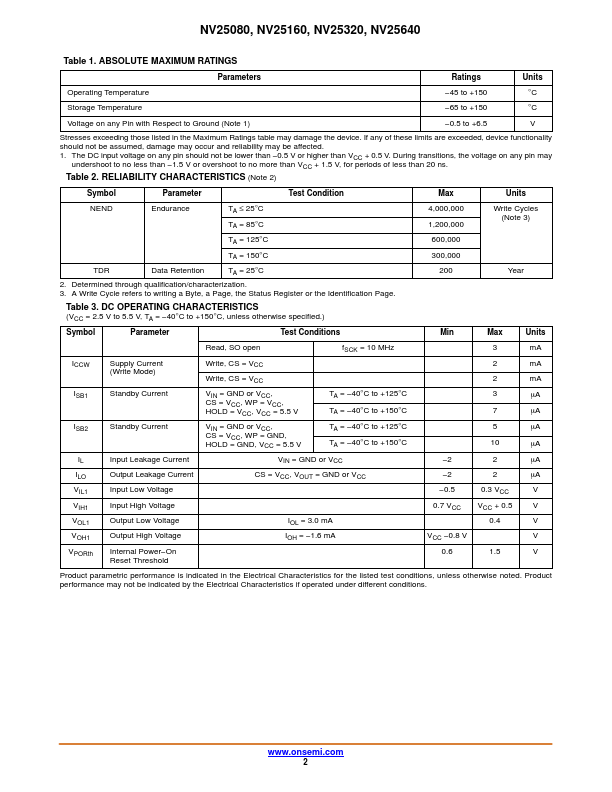

Additional preview pages of the NV25320 datasheet.

📁 Similar Datasheet

  • NV20FP - G-LOW CURRENT HIGH VOLTAGE RECTIFIERS (HV Component Associates)
  • NV231 - light weight (DB Lectro)
  • NV2M - light weight (DB Lectro)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
DATA SHEET www.onsemi.com EEPROM Serial 8/16/32/64-Kb SPI Automotive Grade 0 NV25080, NV25160, NV25320, NV25640 Description NV25080, NV25160, NV25320, NV25640 are a EERPOM Serial 8/16/32/64−Kb SPI Automotive Grade 0 devices internally organized as 1K/2K/4K/8Kx8 bits. It features a 32−byte page write buffer and supports the Serial Peripheral Interface (SPI) protocol. The device is enabled through a Chip Select (CS) input. In addition, the required bus signals are clock input (SCK), data input (SI) and data output (SO) lines. The HOLD input may be used to pause any serial communication with the NV25xxx device. The device features software and hardware write protection, including partial as well as full array protection.
