NV25640, NV25080 EEPROM

ON Semiconductor

Description

NV25080, NV25160, NV25320, NV25640 EEPROM Serial 8/16/32/64-Kb SPI Automotive Grade 0 .
NV25080, NV25160, NV25320, NV25640 are a EERPOM Serial 8/16/32/64. Kb SPI Automotive Grade 0 devices internally organized as 1K/2K/4K/8Kx8 bits.

📥 Download Datasheet

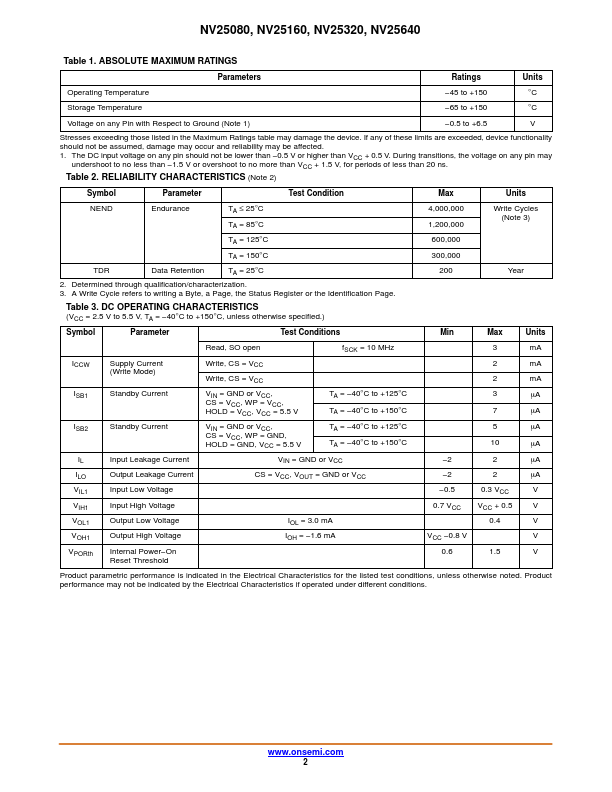

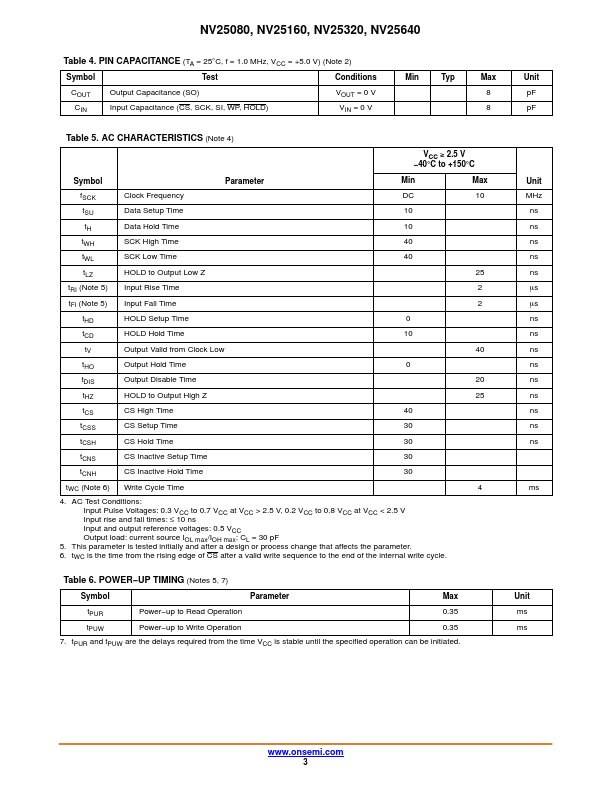

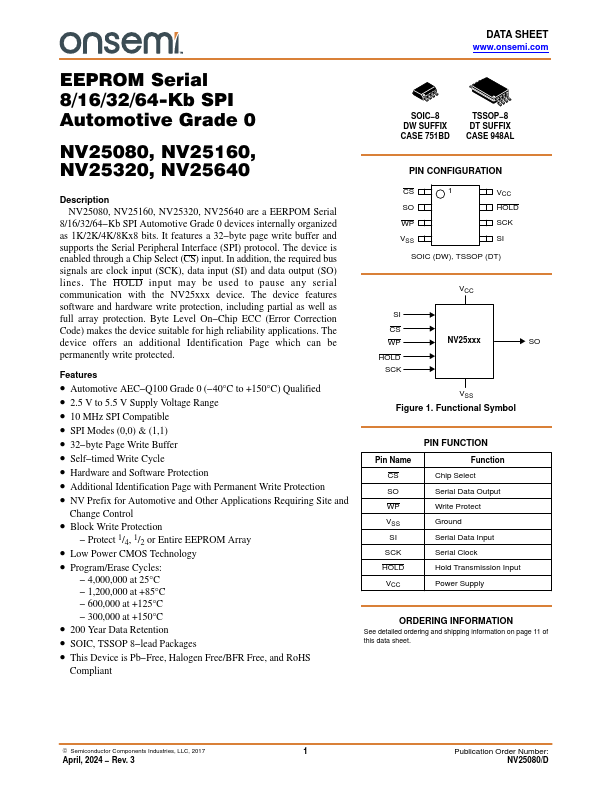

NV25640 Datasheet Preview — This datasheet PDF includes multiple part numbers: NV25640, NV25080. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: NV25640, NV25080
Manufacturer: ON Semiconductor ↗
File Size: 305.08 KB
Datasheet: NV25080-ONSemiconductor.pdf
Description: EEPROM
Note: This datasheet PDF includes multiple part numbers: NV25640, NV25080.
Please refer to the document for exact specifications by model.

Features

* a 32
* byte page write buffer and supports the Serial Peripheral Interface (SPI) protocol. The device is enabled through a Chip Select (CS) input. In addition, the required bus signals are clock input (SCK), data input (SI) and data output (SO) lines. The HOLD input may be used to pause any se
