NVH050N65S3F N-Channel MOSFET

ON Semiconductor

Description

MOSFET * Power, N‐Channel, SUPERFET III, FRFET 650 V, 50 mW, 58 A NVH050N65S3F .
SUPERFET III MOSFET is ON Semiconductor’s brand. new high voltage super. junction (SJ) MOSFET family that is utilizing charge balance te.

📥 Download Datasheet

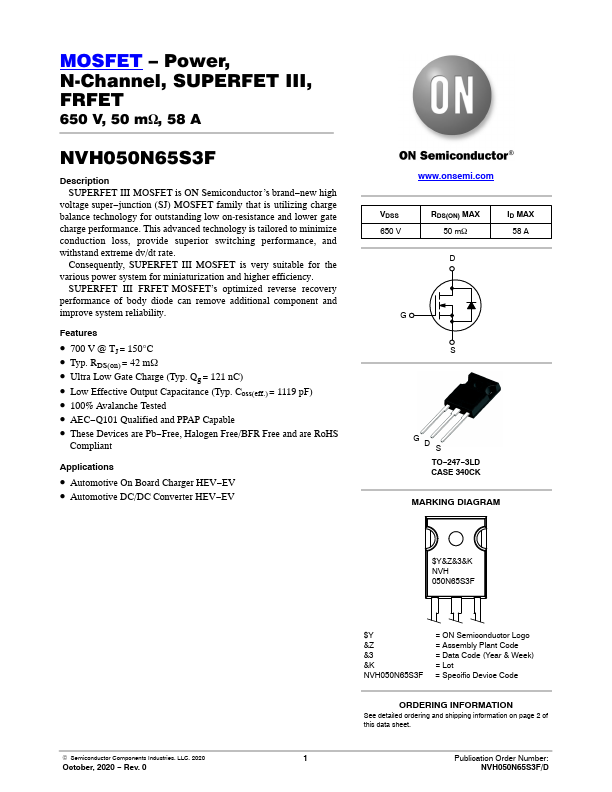

NVH050N65S3F Datasheet Preview — Preview of NVH050N65S3F PDF

Datasheet Specifications

Part number: NVH050N65S3F
Manufacturer: ON Semiconductor ↗
File Size: 222.92 KB
Datasheet: NVH050N65S3F-ONSemiconductor.pdf
Description: N-Channel MOSFET

Features

* 700 V @ TJ = 150°C
* Typ. RDS(on) = 42 mW
* Ultra Low Gate Charge (Typ. Qg = 121 nC)
* Low Effective Output Capacitance (Typ. Coss(eff. ) = 1119 pF)
* 100% Avalanche Tested
* AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb

Applications

* Automotive On Board Charger HEV
* EV
* Automotive DC/DC Converter HEV
* EV www. onsemi. com VDSS 650 V RDS(ON) MAX 50 mW D ID MAX 58 A G S GD S TO
* 247
* 3LD CASE 340CK MARKING DIAGRAM © Semiconductor Components Industries, LLC, 2020 October, 2020
