NVH4L020N120SC1, SiC MOSFET

DATA SHEET www.onsemi.com Silicon Carbide (SiC) MOSFET * 20 mohm, 1200 V, M1, TO-247-4L NVH4L020N120SC1 .

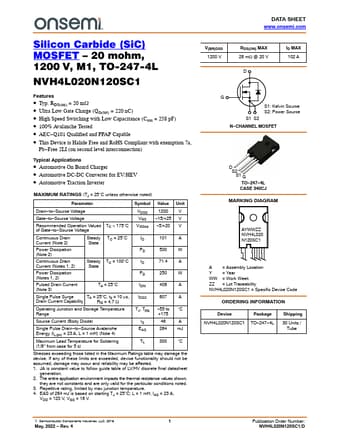

datasheet Preview Page 1 from Datasheet4u.com

NVH4L020N120SC1-ONSemiconductor.pdf

NVH4L020N120SC1 Datasheet Preview — Preview of NVH4L020N120SC1 PDF

Datasheet Details

Part number:

NVH4L020N120SC1

Manufacturer:

ON Semiconductor ↗

File Size:

358.17 KB

Description:

SiC MOSFET

Features

* Typ. RDS(on) = 20 mW
* Ultra Low Gate Charge (QG(tot) = 220 nC)
* High Speed Switching with Low Capacitance (Coss = 258 pF)
* 100% Avalanche Tested
* AEC
* Q101 Qualified and PPAP Capable
* This Device is Halide Free and RoHS Compliant with exe

Applications

* Automotive On Board Charger
* Automotive DC-DC Converter for EV/HEV
* Automotive Traction Inverter MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Parameter Symbol Value Unit Drain
* to
* Source Voltage VDSS 1200 V Gate
* to
* Source Volta
