NVLUD4C26N 30V 7.3A Dual N-Channel Power MOSFET

ON Semiconductor

Description

NVLUD4C26N MOSFET * Power, Dual, N-Channel, mCool, 2.0x2.0x0.55 mm, UDFN6 30 V, 7.3 A .

📥 Download Datasheet

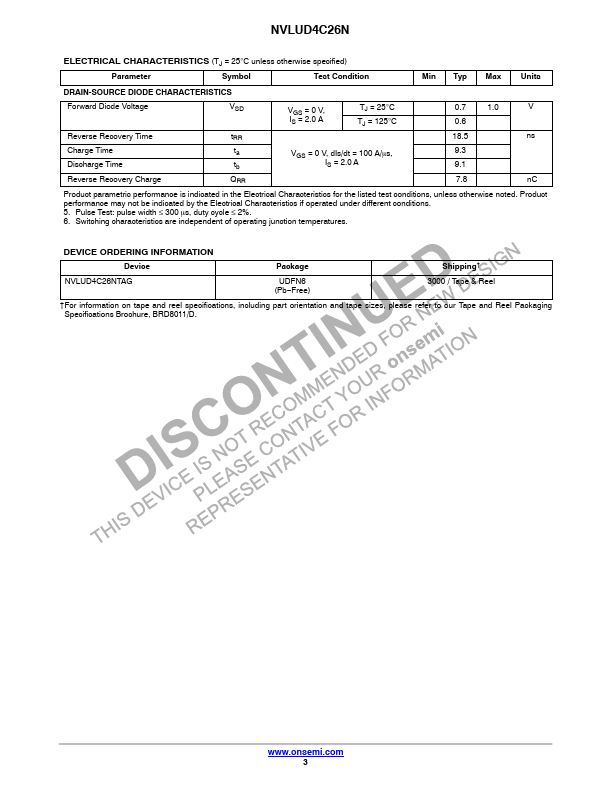

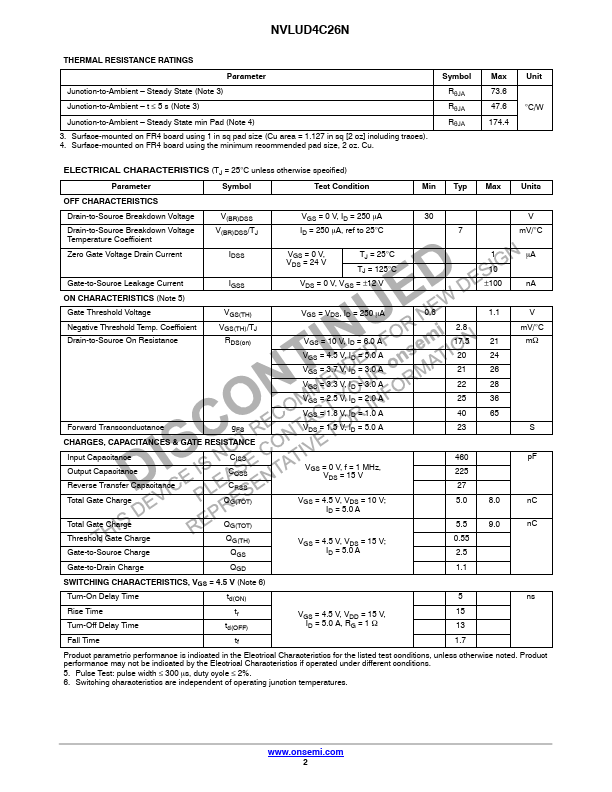

NVLUD4C26N Datasheet Preview — Preview of NVLUD4C26N PDF

Datasheet Specifications

Part number: NVLUD4C26N
Manufacturer: ON Semiconductor ↗
File Size: 342.05 KB
Datasheet: NVLUD4C26N-ONSemiconductor.pdf
Description: 30V 7.3A Dual N-Channel Power MOSFET

Features

* UDFN Package with Exposed Drain Pads for Excellent Thermal Conduction
* Low Profile UDFN 2.0 x 2.0 x 0.55 mm for Board Space Saving
* Ultra Low RDS(on)
* AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free a

Applications

* Power Load Switch
* Wireless Charging
* DC
* DC Converters MAXIMUM RATINGS (TJ = 25°C unless otherwise stated) Parameter Symbol Value Unit Drain-to-Source Voltage VDSS 30 V Gate-to-Source Voltage VGS ±12 V Continuous Drain Steady TA = 25°C ID Current (No
