NVMFS4C306N 30V 71A N-Channel MOSFET

ON Semiconductor

Description

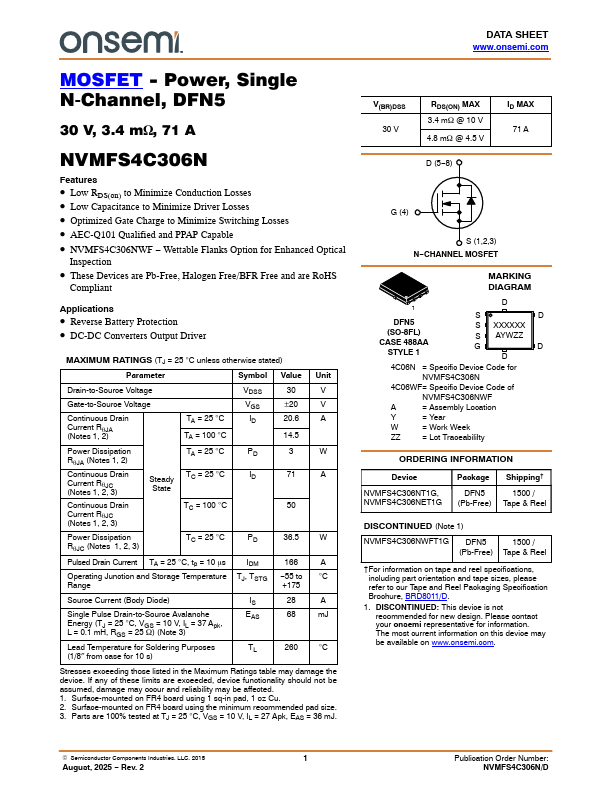

DATA SHEET www.onsemi.com MOSFET - Power, Single N-Channel, DFN5 30 V, 3.4 mW, 71 A NVMFS4C306N .

📥 Download Datasheet

NVMFS4C306N Datasheet Preview — Preview of NVMFS4C306N PDF

Datasheet Specifications

Part number: NVMFS4C306N
Manufacturer: ON Semiconductor ↗
File Size: 190.22 KB
Datasheet: NVMFS4C306N-ONSemiconductor.pdf
Description: 30V 71A N-Channel MOSFET

Features

* Low RDS(on) to Minimize Conduction Losses
* Low Capacitance to Minimize Driver Losses
* Optimized Gate Charge to Minimize Switching Losses
* AEC-Q101 Qualified and PPAP Capable
* NVMFS4C306NWF
* Wettable Flanks Option for Enhanced Optical Inspection

Applications

* Reverse Battery Protection
* DC-DC Converters Output Driver MAXIMUM RATINGS (TJ = 25 °C unless otherwise stated) Parameter Symbol Value Unit Drain-to-Source Voltage Gate-to-Source Voltage Continuous Drain Current RqJA (Notes 1, 2) VDSS 30 V VGS ±20 V TA = 25 °C ID 20.6
