NVTFS4C05N 30V N-Channel Power MOSFET

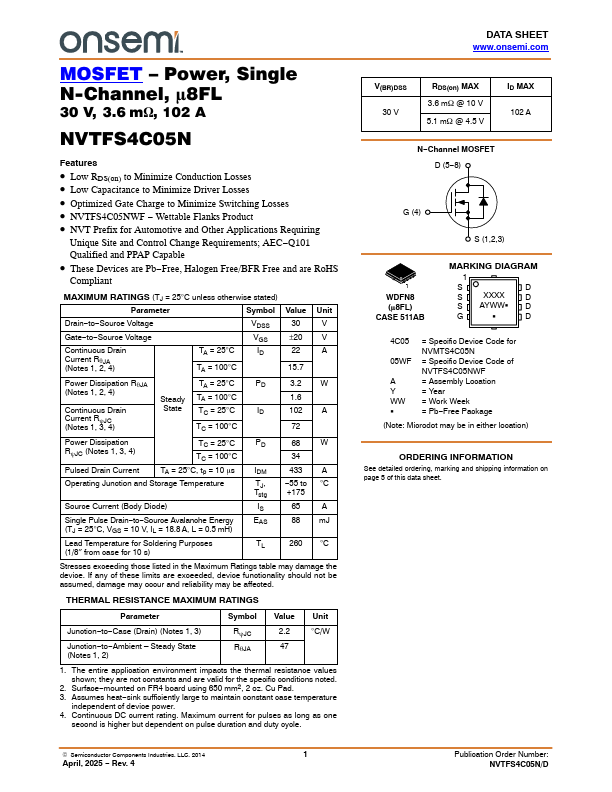

📥 Download Datasheet Datasheet Preview Page 1

Description

MOSFET * Power, Single N-Channel, m8FL 30 V, 3.6 mW, 102 A NVTFS4C05N .

📥 Download Datasheet

Preview of NVTFS4C05N PDF

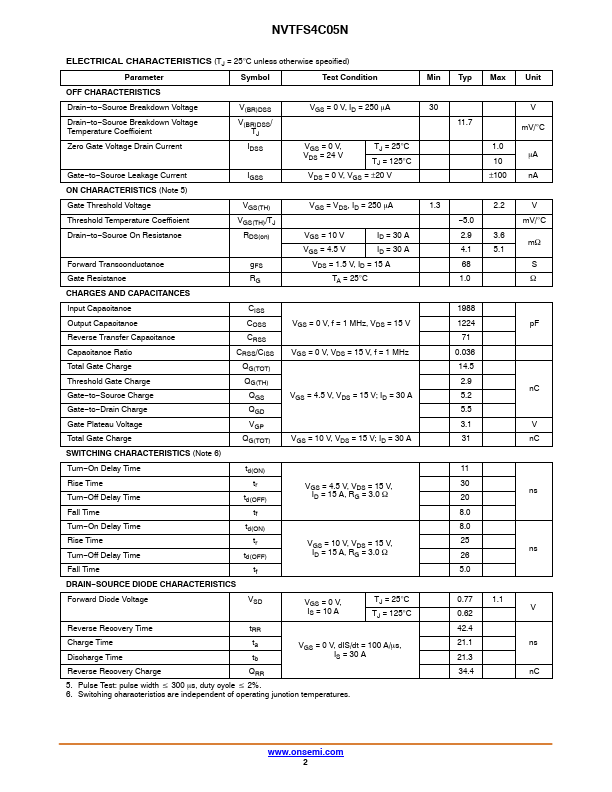

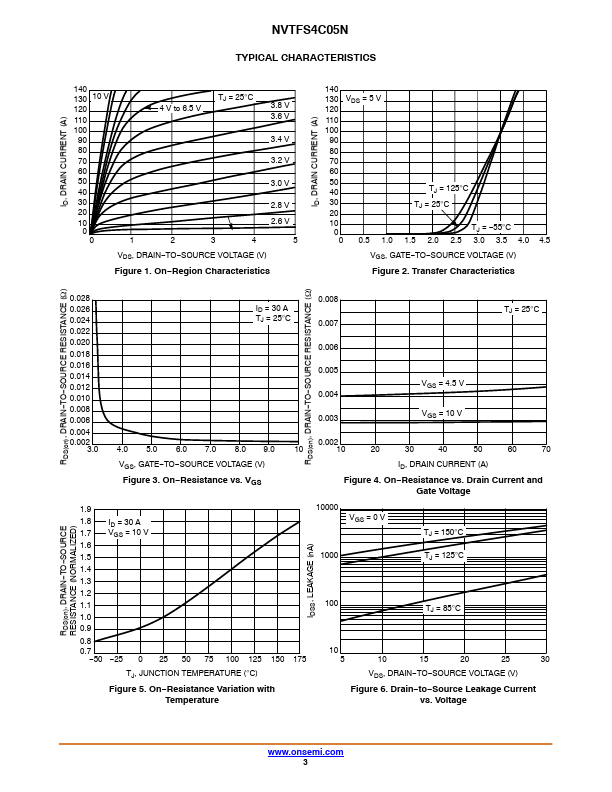

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Low RDS(on) to Minimize Conduction Losses
* Low Capacitance to Minimize Driver Losses
* Optimized Gate Charge to Minimize Switching Losses
* NVTFS4C05NWF
* Wettable Flanks Product

Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant MAXIMUM RATINGS (TJ = 25°C unless otherwise stated) Parameter Symbol Value Unit Drain
* to
* So
