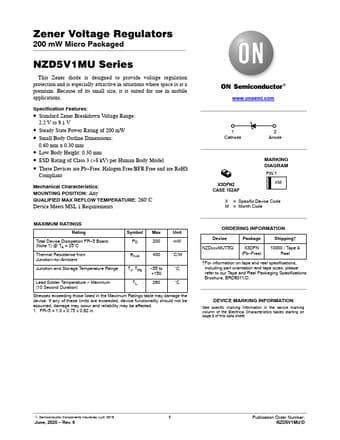

Zener Voltage Regulators
200 mW Micro Packaged
NZD5V1MU Series
This Zener diode is designed to provide voltage regulation protection and is especially attractive in situations where space is at a premium. Because of its small size, it is suited for use in mobile applications.
Specification Features:
• Standard Zener Breakdown Voltage Range:
2.2 V to 9.1 V
• Steady State Power Rating of 200 mW • Small Body Outline Dimensions:
0.60 mm x 0.30 mm
• Low Body Height: 0.30 mm • ESD Rating of Class 3 (>8 kV) per Human Body Model • These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
Mechanical Characteristics: MOUNTING POSITION: Any QUALIFIED MAX REFLOW TEMPERATURE: 260°C Device Meets MSL 1 Requirements
www.onsemi.
NZD4V7MUT5G Datasheet
