P3P8203A Datasheet - ON Semiconductor

P3P8203A - General Purpose Peak EMI Reduction Device

P3P8203A is a versatile, 3.3 V LVCMOS Peak EMI reduction device.

P3P8203A accepts an input clock either from a Fundamental Crystal or from an external reference and locks on to it delivering a 1x modulated clock.

P3P8203A has an SSEXTR pin to select different deviations depending upon the value of a

P3P8203A Features

* 1x, LVCMOS Peak EMI Reduction

* Supports non-continuous input clock applications

* Input / output frequency range: 18 MHz

* 36 MHz

* Analog Deviation Selection

* Supply Voltage: 3.3 V ± 0.3 V

* 8 pin, WDFN (2 mm X 2 mm) package

* Oper

P3P8203A-ONSemiconductor.pdf

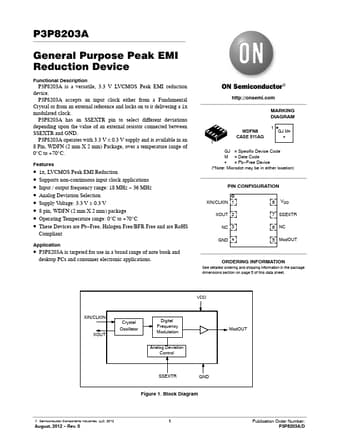

Preview of P3P8203A PDF
P3P8203A Datasheet Preview Page 2 P3P8203A Datasheet Preview Page 3

Datasheet Details

Part number:

P3P8203A

Manufacturer:

ON Semiconductor ↗

File Size:

110.37 KB

Description:

General purpose peak emi reduction device.
