* Working Peak Reverse Voltage Range
* 5.8 to 171 V
* Standard Zener Breakdown Voltage Range
* 6.8 to 200 V
* Peak Power
* 600 W @ 1 ms
* ESD Rating of Class 3 (>16 kV) per Human Body Model
* Maximum Clamp Voltage @ Peak Pulse Current
P6SMB200AT3 Datasheet (155.97 KB)
P6SMB200AT3
155.97 KB
600 watt peak power zener transient voltage suppressors.

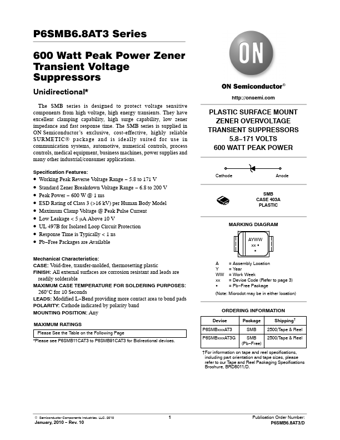

P6SMB6.8AT3 Series
600 Watt Peak Power Zener Transient Voltage Suppressors
Unidirectional
*
The SMB series is designed to protect voltage sensitiv.
