QRD1113

Reflective Object Sensor

QRD1113 Features

* Phototransistor Output

* No

* Contact Surface Sensing

* Unfocused for Sensing Diffused Surfaces

* Compact Package

* Daylight Filter on Sensor

* This Device is Pb

* Free and RoHS Compliant DATA SHEET www.onsemi.com REFLECTIVE RECTANGULAR SENSOR CASE 100BY PIN

QRD1113 General Description

The QRD1113 and QRD1114 reflective sensors consist of an infrared emitting diode and an NPN silicon phototransistor mounted side by side in a black plastic housing. The on

*axis radiation of the emitter and the on

*axis response of the detector are both perpendicular to the face of the.

QRD1113 Datasheet (596.87 KB)

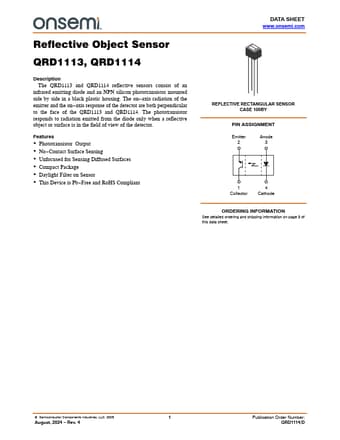

Preview of QRD1113 PDF

Datasheet Details

Part number:

QRD1113

Manufacturer:

ON Semiconductor ↗

File Size:

596.87 KB

Description:

Reflective object sensor.
