RSL10

Bluetooth 5 Radio System-on-Chip

RSL10 Features

* Rx Sensitivity (Bluetooth Low Energy Mode, 1 Mbps):

* 94 dBm

* Data Rate: 62.5 to 2000 kbps

* Transmitting Power:

* 17 to +6 dBm

* Peak Rx Current = 5.6 mA (1.25 V VBAT)

* Peak Rx Current = 3.0 mA (3 V VBAT)

* Peak Tx Current (0 dBm) =

RSL10 Datasheet (343.90 KB)

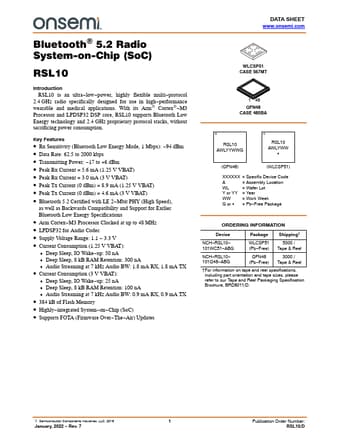

Preview of RSL10 PDF

Datasheet Details

Part number:

RSL10

Manufacturer:

ON Semiconductor ↗

File Size:

343.90 KB

Description:

Bluetooth 5 radio system-on-chip.
Bluetooth) 5.2 Radio System-on-Chip (SoC) RSL10 Introduction RSL10 is an ultra

*low

*power, highly flexible multi

*protocol 2.4 G.
