SMF5.0AT1 - Zener Transient Voltage Suppressor SOD-123 Flat Lead Package

This page provides the datasheet information for the SMF5.0AT1, a member of the SMF50AT1 Zener Transient Voltage Suppressor SOD-123 Flat Lead Package family.

Datasheet Summary

Features

http://onsemi. com.
Stand.
off Voltage: 5.
170 Volts.
Peak Power.
200 Watts @ 1 ms (SMF5.0A.
SMF58A).
175 Watts @ 1 ms (SMF60A.
SMF170A) Maximum Clamp Voltage @ Peak Pulse Current Low Leakage Response Time is Typically < 1 ns ESD Rating of Class 3 (> 16 kV) per Human Body Model IEC61000.
4.
2 Level 4 ESD Protection.

Datasheet Details

Part number	SMF5.0AT1
Manufacturer	ON Semiconductor
File Size	95.60 KB
Description	Zener Transient Voltage Suppressor SOD-123 Flat Lead Package
Datasheet	SMF5.0AT1 Datasheet
Additional preview pages of the SMF5.0AT1 datasheet.

📁 Similar Datasheet

SMF5.0A - SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (KD)

SMF5.0A - ZENER OVERVOLTAGE TRANSIENT SUPPRESSOR (EIC)

SMF5.0A - Surface Mount Transient Voltage Suppressors (CYStech Electronics)

SMF5.0A - 200W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (TIPTEK)

SMF5.0A - 5V - 100V Surface Mount Transient Voltage Suppressor (Taiwan Semiconductor)

SMF5.0A - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (HY)

SMF5.0A - Surface Mount Transient Voltage (Rectron)

SMF5.0A - 200W SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR (WON-TOP)

SMF5.0A - SMD Transient Voltage Suppressor Diodes (Diotec)

SMF5.0A - Glass Passivated Junction Transient Voltage Suppressors (JGD)

Full PDF Text Transcription

Click to expand full text

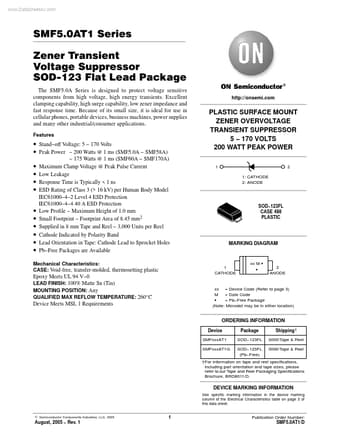

www.DataSheet4U.com SMF5.0AT1 Series Zener Transient Voltage Suppressor SOD−123 Flat Lead Package The SMF5.0A Series is designed to protect voltage sensitive components from high voltage, high energy transients. Excellent clamping capability, high surge capability, low zener impedance and fast response time. Because of its small size, it is ideal for use in cellular phones, portable devices, business machines, power supplies and many other industrial/consumer applications. Features http://onsemi.com • Stand−off Voltage: 5 − 170 Volts • Peak Power − 200 Watts @ 1 ms (SMF5.
