SNUF6401 - 6-Channel EMI Filter

Description

Filter + ESDn 20 25 30 35 40

Figure 1.

Figure 2.

Rev.

Features

Benefits http://onsemi. com.

onsemi

📥 Download Datasheet

Datasheet Details

Part number	SNUF6401
Manufacturer	onsemi
File Size	133.23 KB
Description	6-Channel EMI Filter
Datasheet	SNUF6401 Datasheet
Additional preview pages of the SNUF6401 datasheet.

📁 Similar Datasheet

SNU102K104R-F - Snubber Capacitors (Cornell Dubilier Electronics)
SNU102K105R-F - Snubber Capacitors (Cornell Dubilier Electronics)
SNU102K205R-F - Snubber Capacitors (Cornell Dubilier Electronics)
SNU102K254R-F - Snubber Capacitors (Cornell Dubilier Electronics)
SNU102K504R-F - Snubber Capacitors (Cornell Dubilier Electronics)
SNU202K104R-F - Snubber Capacitors (Cornell Dubilier Electronics)
SNU202K105R-F - Snubber Capacitors (Cornell Dubilier Electronics)
SNU202K254R-F - Snubber Capacitors (Cornell Dubilier Electronics)
SNU202K503R-F - Snubber Capacitors (Cornell Dubilier Electronics)
SNU202K504R-F - Snubber Capacitors (Cornell Dubilier Electronics)

Other Datasheets by ON Semiconductor

SNUP2114UCMR6T1G - Transient Voltage Suppressors

Full PDF Text Transcription

Click to expand full text

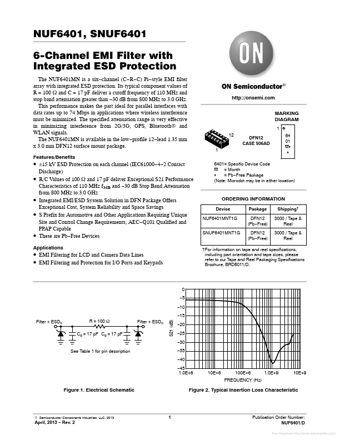

NUF6401, SNUF6401 6-Channel EMI Filter with Integrated ESD Protection The NUF6401MN is a six−channel (C−R−C) Pi−style EMI filter array with integrated ESD protection. Its typical component values of R = 100 W and C = 17 pF deliver a cutoff frequency of 110 MHz and stop band attenuation greater than −30 dB from 800 MHz to 3.0 GHz. This performance makes the part ideal for parallel interfaces with data rates up to 74 Mbps in applications where wireless interference must be minimized. The specified attenuation range is very effective in minimizing interference from 2G/3G, GPS, Bluetooth® and WLAN signals. The NUF6401MN is available in the low−profile 12−lead 1.35 mm x 3.0 mm DFN12 surface mount package. Features/Benefits http://onsemi.
