STK541UC62K-E Intelligent Power Module

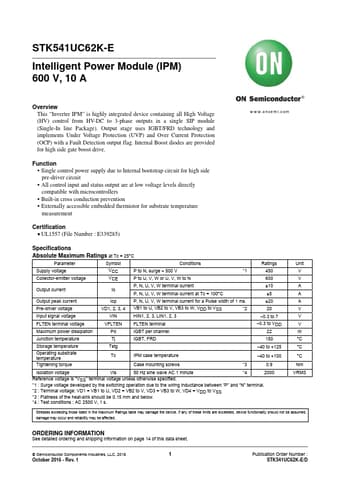

STK541UC62K-E Intelligent Power Module (IPM) 600 V, 10 A Overview This “Inverter IPM” is highly integrated device containing all High Voltage (HV) control from HV-DC to 3-phase outputs in a single SIP module (Single-In line Package). Output stage uses IGBT/FRD technology and implements Under Voltage Protection (UVP) and Over Current Protection (OCP) with a Fault Detection output flag. Internal Boost diodes are provided for high side gate boost drive. www.onsemi.com Function Single contr.
