SVC720 - Silicon Diffused Junction Type Varactor Diode

Features

  • Twin type with a good linearity of C-V characteristic. Excels in large input characteristic.
  • Small MCPH package permits SVC720-applied sets to be compact and slim.
  • High capacitance ratio (VR=1.0 to 4.0V).
  • Low series resistance.
  • Low voltage drive. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Reverse Voltage Junction Temperature Storage Temperature Symbol VR Tj Tstg Electrical Characteristics at Ta=25°C Conditions Parameter S.

📥 Download Datasheet

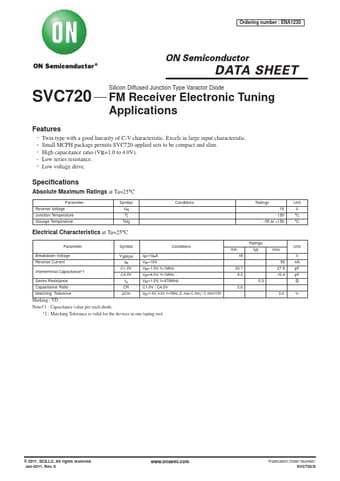

Datasheet preview – SVC720

Datasheet Details

Part number SVC720
Manufacturer ON Semiconductor
File Size 80.42 KB
Description Silicon Diffused Junction Type Varactor Diode
Datasheet download datasheet SVC720 Datasheet
Additional preview pages of the SVC720 datasheet.

📁 Similar Datasheet

Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
SVC720 Ordering number : ENA1230 SVC720 Silicon Diffused Junction Type Varactor Diode FM Receiver Electronic Tuning Applications Features • Twin type with a good linearity of C-V characteristic. Excels in large input characteristic. • Small MCPH package permits SVC720-applied sets to be compact and slim. • High capacitance ratio (VR=1.0 to 4.0V). • Low series resistance. • Low voltage drive. Specifications Absolute Maximum Ratings at Ta=25°C Parameter Reverse Voltage Junction Temperature Storage Temperature Symbol VR Tj Tstg Electrical Characteristics at Ta=25°C Conditions Parameter Symbol Conditions Breakdown Voltage V(BR)R IR=10µA Reverse Current Interterminal Capacitance*1 Series Resistance Capacitance Ratio IR C1.0V C4.0V rs CR VR=10V VR=1.0V, f=1MHz VR=4.
