DATA SHEET www.onsemi.com ESD Protection Diode Low Capacitance ESD Protection Diode for High Speed Data Line ESD7002, SZESD7002 The ESD7002 surge protection device is designed to protect high speed data lines from ESD.

Ultra low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines.

The flow through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent imped

SZESD7002 Features

* Low Capacitance (0.3 pF Typical, I/O to GND)

* Diode capacitance matching

* Protection for the Following IEC Standards:

* IEC 61000

* 4

* 2 (Level 4)

* Low ESD Clamping Voltage

* SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control C

SZESD7002_ONSemiconductor.pdf

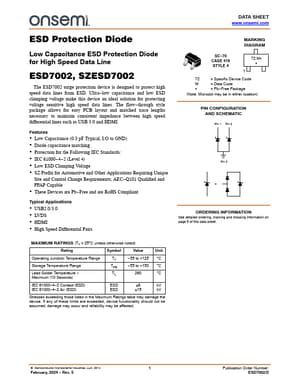

Preview of SZESD7002 PDF
