TCC-202 Datasheet - ON Semiconductor

TCC-202 Two-Output PTIC Control IC

Bump RDL Name A1 OUTB A2 ATEST A3 VHV A4 L_BOOST B1 OUTA B2 GNDA B3 GND_BOOST B4 VIO C1 VREG C2 AVDD C3 DATA C4 CLK 1. To be grounded when not in use. Type AOH AO AOH/AIH AOH AOH P P AO DIO DI Description High Voltage Output B Analog Test Out (Note 1) Boost High Voltage Boost Induct.
TCC-202 Two-Output PTIC Control IC Introduction TCC 202 is a two output high voltage digital to analog control IC specifically designed to control and bias ON Semiconductor’s Passive Tunable Integrated Circuits (PTICs). These tunable capacitor control circuits are intended for use in mobile phones and dedicated RF tuning applications. The implementation of ON Semiconductor’s tunable circuits in mobile phones enables significant improvement in terms of antenna radiated p.

TCC-202 Features

* Controls ON Semiconductor’s PTIC Tunable Capacitors

* Compliant with Timing Needs of Cellular and Other Wireless System Requirements

* Integrated Boost Converter with 2 Programmable DAC Outputs (up to 24 V)

* Low Power Consumption

* MIPI

* RFFE Interfa

TCC-202 Datasheet (450.25 KB)

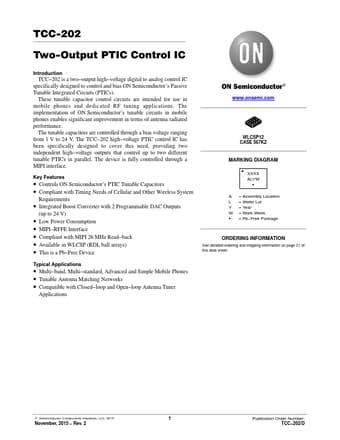

Preview of TCC-202 PDF
TCC-202 Datasheet Preview Page 2 TCC-202 Datasheet Preview Page 3

Datasheet Details

Part number:

TCC-202

Manufacturer:

ON Semiconductor ↗

File Size:

450.25 KB

Description:

Two-output ptic control ic.
