TIP2955, TIP3055 - PNP Silicon Power Transistors

ON Semiconductor

📥 Download Datasheet

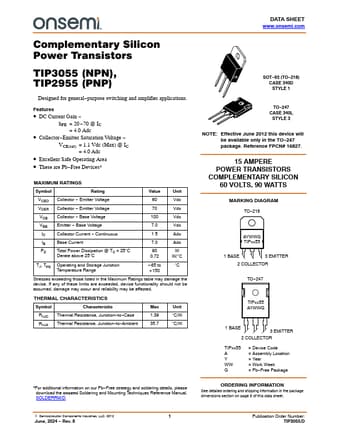

TIP2955 Datasheet Preview — This datasheet PDF includes multiple part numbers: TIP2955, TIP3055. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TIP2955, TIP3055
Manufacturer	ON Semiconductor ↗
File Size	212.40 KB
Description	PNP Silicon Power Transistors
Datasheet	TIP3055-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: TIP2955, TIP3055. Please refer to the document for exact specifications by model.

TIP2955 Product details

Features

DC Current Gain.
hFE = 20 .
70 @ IC = 4.0 Adc.
Collector.
Emitter Saturation Voltage.
VCE(sat) = 1.1 Vdc (Max) @ IC = 4.0 Adc.
Excellent Safe Operating Area.
These are Pb.
Free Devices.
