TL494 Datasheet - ON Semiconductor

TL494 Switch mode Pulse Width Modulation Controller

TL494 Features

* Complete Pulse Width Modulation Control Circuitry

* On

* Chip Oscillator with Master or Slave Operation

* On

* Chip Error Amplifiers

* On

* Chip 5.0 V Reference

* Adjustable Deadtime Control

* Uncommitted Output Transistors Rated to

TL494 Datasheet (240.11 KB)

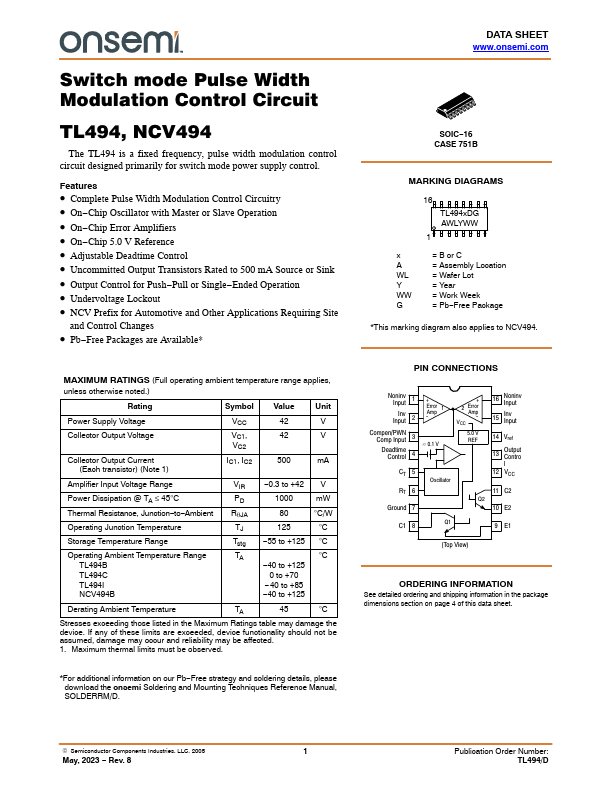

Preview of TL494 PDF

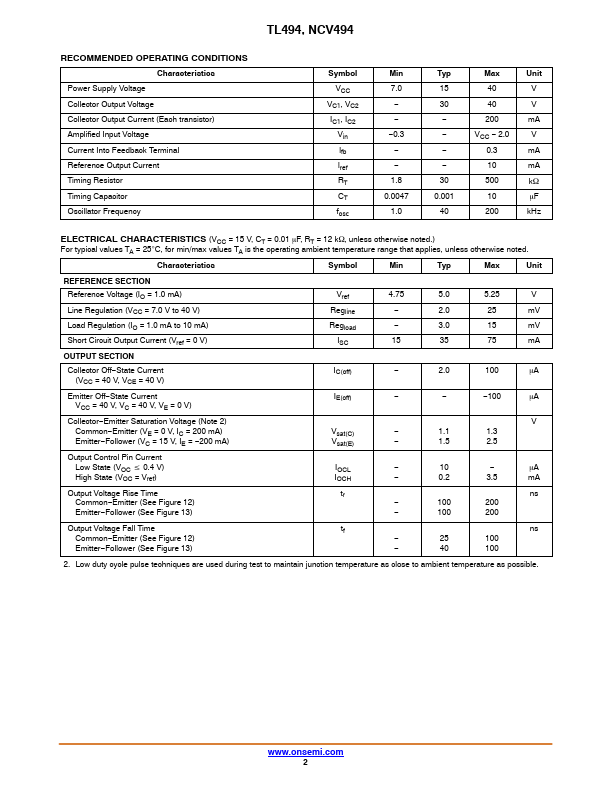

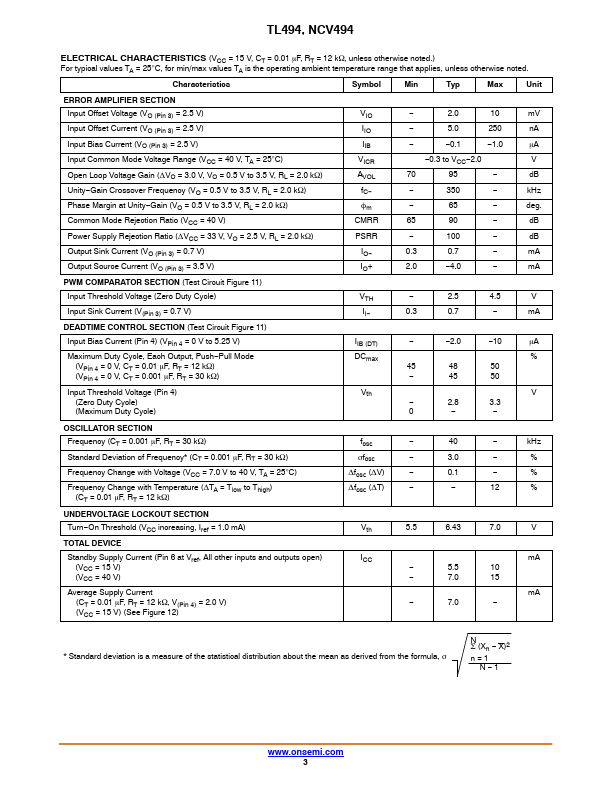

TL494 Datasheet Preview Page 2 TL494 Datasheet Preview Page 3

Datasheet Details

Part number:

TL494

Manufacturer:

ON Semiconductor ↗

File Size:

240.11 KB

Description:

Switch mode pulse width modulation controller.
