MA3075WALT1D - Zener Transient Voltage Suppressor

MA3075WALT1D Description

MA3075WALT1 Preferred Device Zener Transient Voltage Suppressor SOT *23 Dual Common Anode Zeners for ESD Protection These dual monolithic sili.

MA3075WALT1D Features

* http://onsemi. com PIN 1. CATHODE 2. CATHODE 3. ANODE 1 3 2
* SOT
* 23 Package Allows Two Separate Unidirectional
* Configurations Low Leakage < 1 mA @ 5 Volt Breakdown Voltage: 7.2
* 7.9 Volt @ 5 mA L

MA3075WALT1D Applications

* requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common anode design protects two separate lines

📥 Download Datasheet

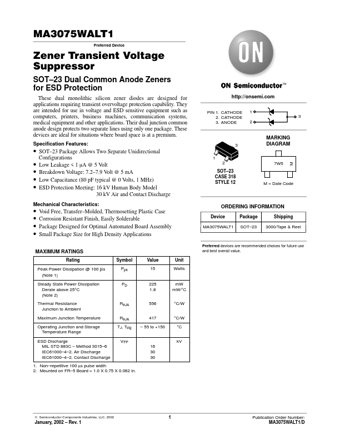

Preview of MA3075WALT1D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MA3075WALT1D
Manufacturer
ON
File Size
51.22 KB
Datasheet
MA3075WALT1D_ONSemiconductor.pdf
Description
Zener Transient Voltage Suppressor
