OPB940 Photologic Slotted Optical Switches

Red *1 Anode Black *2 Cathode White *3 Blue *4 VCC Output Green *5 Ground PCBoard (L) version DIMENSIONS ARE IN: [ MILLIMETERS] INCHES Wired (W) version The W Series includes wire terminations of 24” (610 mm) 7-strand, 26 AWG UL insulated wire on each t.

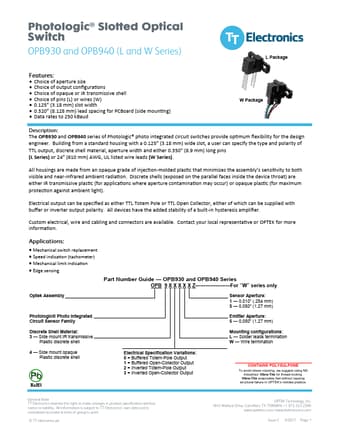

L Package Choice of aperture size Choice of output configurations Choice of opaque or IR transmissive shell Choice of pins (L) or wires (W) 0.125” (3.18 mm) slot width 0.320” (8.128 mm) lead spacing for PCBoard (side mounting) Data rates to 250 kBaud W Package The OPB930 and OPB940 series of Photologic® photo integrated circuit switches provide optimum flexibility for the design engineer. Building from a standard housing with a 0.125” (3.18 mm) wide s.
