OPR2100L

Six Element SMD LED Array

OPR2100L Features

* Surface mountable

* High temperature operation

* Closely matched emissions

* Matched to OPR2100 Photodiode Array Absolute Maximum Ratings (Each channel, TA = 25o C unless otherwise noted) Reverse Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OPR2100L General Description

Enclosed in a compact polyimide chip carrier, this six element LED has been specifically designed to be used as an illuminating source for the OPR2100. The light is spectrally matched to the responsivity for maximum efficency. The six chips are bonded with common cathodes and individual anodes to al.

OPR2100L Datasheet (278.28 KB)

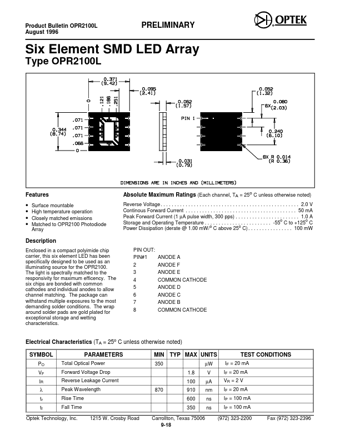

Preview of OPR2100L PDF

Datasheet Details

Part number:

OPR2100L

Manufacturer:

OPTEK

File Size:

278.28 KB

Description:

Six element smd led array.
