Part number:
ODD-15W
Manufacturer:
OPTO DIODE
File Size:
178.46 KB
Description:
Photodiode.

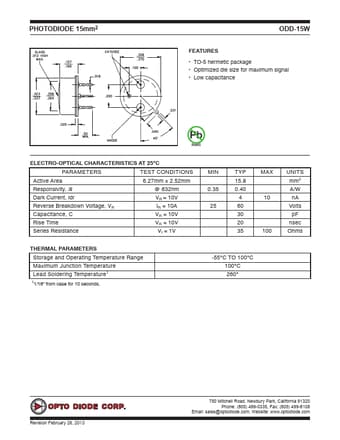

* TO-5 hermetic package
* Optimized die size for maximum signal
* Low capacitance RoHS ELECTRO-OPTICAL CHARACTERISTICS AT 25°C PARAMETERS TEST CONDITIONS Active Area Responsivity, R 6.27mm x 2.52mm @ 632nm Dark Current, Idr Reverse Breakdown Voltage, VR Capacitance, C
ODD-15W
OPTO DIODE
178.46 KB
Photodiode.
📁 Related Datasheet
ODD-15WB - PHOTODIODE
(OPTO DIODE)
PHOTODIODE 15mm2
ODD-15WB
FEATURES • TO-5 hermetic package • Optimized die size for maximum signal • Low capacitance
RoHS
ELECTRO-OPTICAL CHARACTER.
