GM322420 Datasheet - OPTO Logic

GM322420 320 x 240 dots Display Module

GM322420 320 x 240 dots FSTN / STN Reflective / LED Backlight DIMENSIONAL DATA ABSOLUTE MAXIMUM RATINGS Item Measurement (W) x (H) x (T) Unit Item Symbol Condition Min. Max. Unit Module Dimension 139 x 110.2 x 13.2 Max.(LED B/L) mm Supply Voltage (Logic) VDD - VSS 0 7.0 V Viewing Area 103 x 79 mm Supply Voltage(LCD) VDD - VEE 0 30 V Dot Pitch 0.30 x 0.30 mm Input Voltage VI Ta = 25 C VSS VDD V Dot Size 0.29 x 0.29 mm Operating Temp. T opr 0 50 C Weight 170 g St.

GM322420-OPTOLogic.pdf

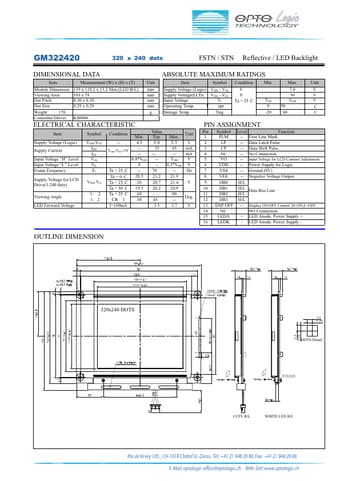

GM322420 Datasheet Preview — Preview of GM322420 PDF

Datasheet Details

Part number:

GM322420

Manufacturer:

OPTO Logic

File Size:

144.72 KB

Description:

320 x 240 dots display module.
