Z120D10

Solid-State Relays

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor GALCO INDUSTRIAL ELECTRONICS Z120D10 SSR RELAY SPST-NO 10A 12-140V DigiKey 0 1 units
$42.02

Z120D10 Datasheet (820.49 KB)

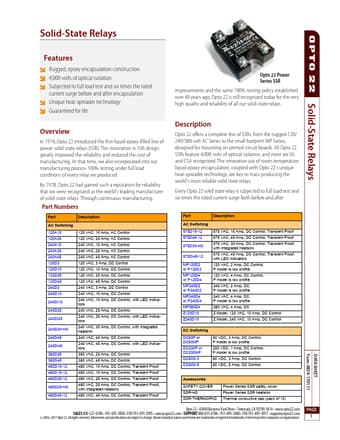

Preview of Z120D10 PDF

Datasheet Details

Part number:

Z120D10

Manufacturer:

OPTO22

File Size:

820.49 KB

Description:

Solid-state relays.

Z120D10 Features

* Rugged, epoxy encapsulation construction 4,000 volts of optical isolation Subjected to full load test and six times the rated current surge before and after encapsulation Unique heat-spreader technology Guaranteed for life Opto 22 Power Series SSR improvements and the same 100% testing policy estab
