DMF5001NYL-ACE-AX LCD Module Technical Specification

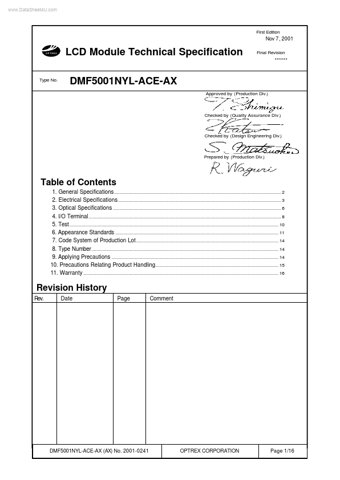

www.DataSheet4U.com First Edition Nov 7, 2001 OPTREX LCD Module Technical Specification DMF5001NYL-ACE-AX Final Revision Type No. Approved by (Production Div.) Checked by (Quality Assurance Div.) Checked by (Design Engineering Div.) Prepared by (Production Div.) Table of Contents 1. General Specifications 2 2. Electrical Specifications 3 3. Optical Specifications 6 4. I/O Terminal 8 5. Test 10 6. Appearance Standards 11 7. Code System of Production.
