OCH29891 - 500mA Single Phase DC Fan Driver

This page provides the datasheet information for the OCH29891, a member of the OCH29891-ORIENT 500mA Single Phase DC Fan Driver family.

Datasheet Summary

Description

The OCH29891 is an integrated Hall sensor with H-Bridged output driver designed for brushless DC motor applications.

Features

  • One-chip Solution (Hall Element + Driver).
  • Continuous Output Current : 500mA.
  • High Sensitivity Hall Sensor BOP25GS、BRP-25GS.
  • Lock-.

📥 Download Datasheet

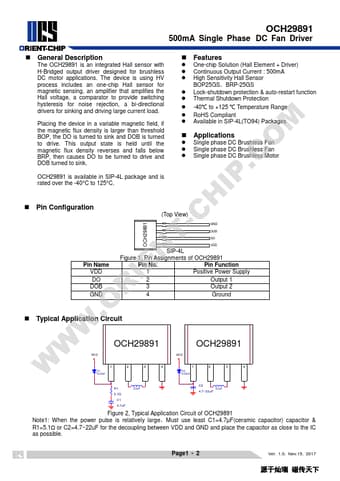

Datasheet preview – OCH29891

Datasheet Details

Part number OCH29891
Manufacturer ORIENT-CHIP
File Size 213.51 KB
Description 500mA Single Phase DC Fan Driver
