OCP2158

1.5MHz 700mA Synchronous Step-Down Converter

OCP2158 Features

* a Power Saving Mode which reduces quiescent current to just 30μA and significantly improves efficiency at light load.

* The OCP2158 is offered in a low profile (1mm) 5-pin, SOT package, and is available in an adjustable version and fixed output voltage of 1.2V, 1.5V and 1.8V.

* Applications

OCP2158 General Description

The OCP2158 is a 1.5MHz constant frequency, high efficiency, slope compensated current mode PWM step-down converter. The devices integrate a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. The OCP2158 can operate from a 2.0V to 6.5V input voltage and i.

OCP2158 Datasheet (216.61 KB)

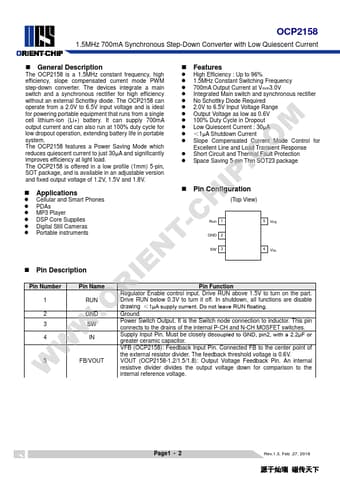

Preview of OCP2158 PDF

Datasheet Details

Part number:

OCP2158

Manufacturer:

ORIENT-CHIP

File Size:

216.61 KB

Description:

1.5mhz 700ma synchronous step-down converter.
