AFY240320A0-2.8INTH-C TFT LCD

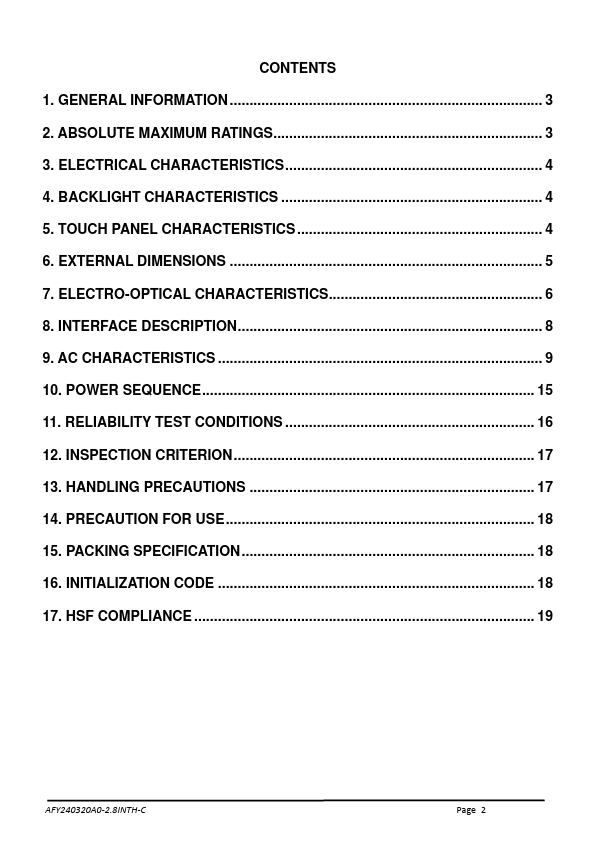

8 9. AC CHARACTERISTICS 9 10. POWER SEQUENCE 15 11. RELIABILITY TEST CONDITIONS 16 12. INSPECTION CRITERION 17 13. HANDLING PRECAUTIONS 17 14. PRECAUTION FOR USE 18 15. PACKING SPECIFICATION 18 16. INITIALIZATION CODE 18 17. HSF COMPLIANCE 19 AFY240320A0-2.8INTH-C Page 2 1. GENERAL INFORM.

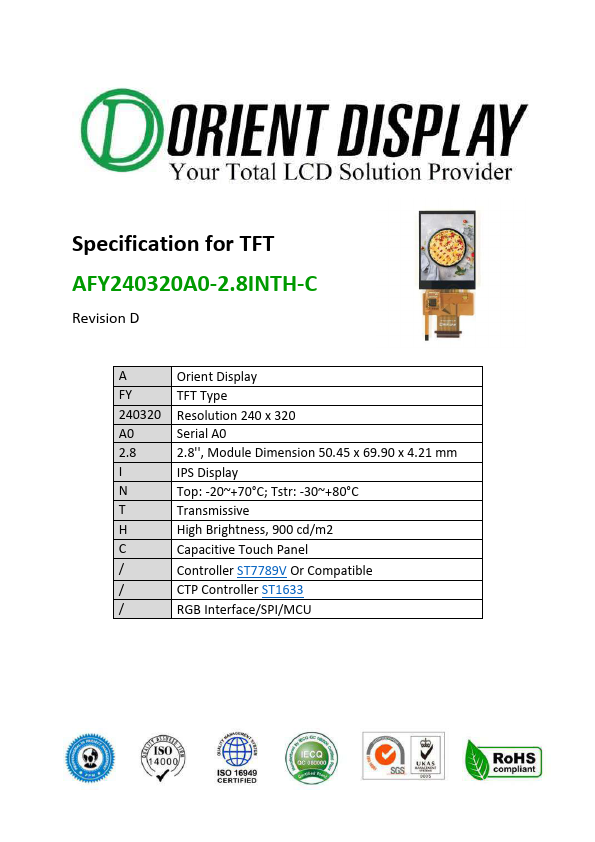

Specification for TFT AFY240320A0-2.8INTH-C Revision D A FY 240320 A0 2.8 I N T H C / / / Orient Display TFT Type Resolution 240 x 320 Serial A0 2.8'', Module Dimension 50.45 x 69.90 x 4.21 mm IPS Display Top: -20~+70°C; Tstr: -30~+80°C Transmissive High Brightness, 900 cd/m2 Capacitive Touch Panel Controller ST7789V Or Compatible CTP Controller ST1633 RGB Interface/SPI/MCU Rev No. Rev date REVISION RECORD Contents O 2019-12-04 First release A 2020-01-03 CHANGED LENS IN GAGE OF 6TH. B .

AFY240320A0-2.8INTH-C Datasheet (939.70 KB)
