AFY320240A0-3.5INTH-C2 TFT LCD

8 9. AC CHARACTERISTICS 9 10. POWER SEQUENCE 14 11. RELIABILITY TEST CONDITIONS 15 12. INSPECTION CRITERION 16 13. HANDLING PRECAUTIONS 16 14. PRECAUTION FOR USE 17 15. PACKING SPECIFICATION 17 16. HSF COMPLIANCE 17 1. GENERAL INFORMATION No. Item 1 LCD size 2 Display mode 3 Viewing .

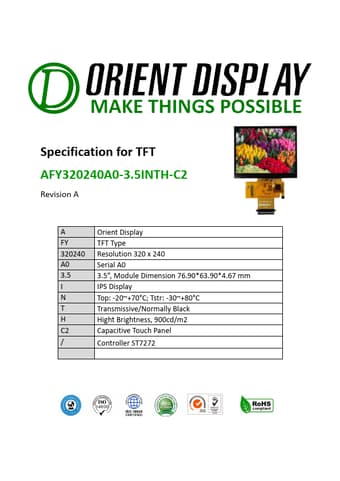

Specification for TFT AFY320240A0-3.5INTH-C2 Revision A A FY 320240 A0 3.5 I N T H C2 / Orient Display TFT Type Resolution 320 x 240 Serial A0 3.5”, Module Dimension 76.90 63.90 4.67 mm IPS Display Top: -20~+70°C; Tstr: -30~+80°C Transmissive/Normally Black Hight Brightness, 900cd/m2 Capacitive Touch Panel Controller ST7272 Rev No. Rev date REVISION RECORD Contents O 2022-05-09 First release A 2024-7-1 Update TOUCH PANEL CHARACTERISTICS Remarks Preliminary Page 4 Orient Display.

AFY320240A0-3.5INTH-C2 Datasheet (1.72 MB)
