AOC160128A0-1.45W Datasheet - ORIENT DISPLAY

AOC160128A0-1.45W OLED

8 2-R0.5±0.05 Polarizer t=0.2mm Remove Tape t=0.15mm Max Contact Side Glue 1.6±0.1 (32.24) (30) (20) (39.5) S0 ( Column 1 ) G127 ( Row 128 ) G1 ( Row 2 ) S479 ( Column 480 ) G126 ( Row 127 ) G0 ( Row 1 ) (1.44) (8.7) (5.5) 3±0.5 (Stiffener) 0.3±0.03 0.80 Max (2.2) (1.6) (Reference Mech.

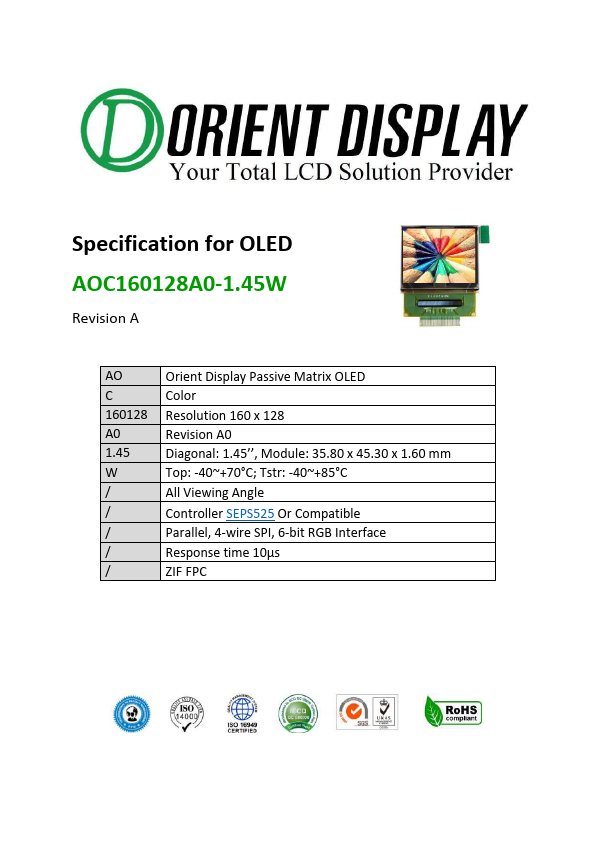

Specification for OLED AOC160128A0-1.45W Revision A AO C 160128 A0 1.45 W / / / / / Orient Display Passive Matrix OLED Color Resolution 160 x 128 Revision A0 Diagonal: 1.45’’, Module: 35.80 x 45.30 x 1.60 mm Top: -40~+70°C; Tstr: -40~+85°C All Viewing Angle Controller SEPS525 Or Compatible Parallel, 4-wire SPI, 6-bit RGB Interface Response time 10µs ZIF FPC Revised History Part Number Revision AOC160128A0-1.45W A New Revision Content Revised on March 21, 2013 Orient Display (N.A.) Ltd. .

AOC160128A0-1.45W Datasheet (900.59 KB)

Preview of AOC160128A0-1.45W PDF
AOC160128A0-1.45W Datasheet Preview Page 2 AOC160128A0-1.45W Datasheet Preview Page 3

Datasheet Details

Part number:

AOC160128A0-1.45W

Manufacturer:

ORIENT DISPLAY

File Size:

900.59 KB

Description:

Oled.
