OSD056TN52 Datasheet - OSD

OSD056TN52 LCD

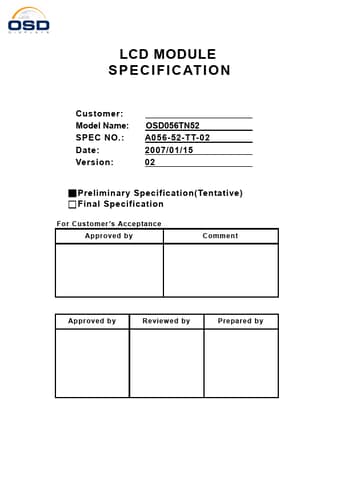

LCD MODULE S P E C I F I C AT I O N Customer: Model Name: SPEC NO.: Date: Version: OSD056TN52 A056-52-TT-02 2007/01/15 02 Preliminary Specification(Tentative) Final Specification For Customer ’s Acceptance Approved by Comment Approved by Review ed by Prepared by www.DataSheet4U.net Record of Revision Version Pre-spec.01 Pre-spec.02 Revise Date Page 2006/12/18 2007/01/15 5 8 10 19 20 Initial Release Modify Min.&Max. value of VLED Modify Typ. Value of Tvbp & Thbp in HV mode .

OSD056TN52_OSD.pdf
