LBL29S - Lead (Pb) Free Product

OSRAM GmbH

The LBL29S by OSRAM GmbH is a Lead (Pb) Free Product. Below is the official datasheet preview.

📥 Download Datasheet

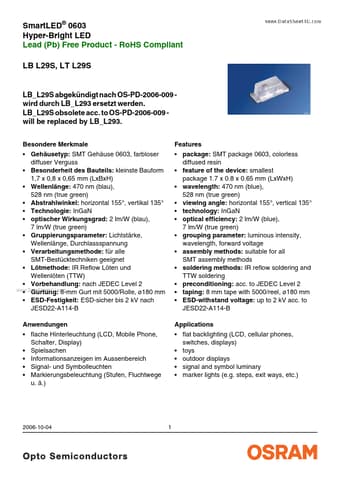

LBL29S Lead (Pb) Free Product by OSRAM GmbH - Datasheet Preview — Official preview page of the LBL29S Lead (Pb) Free Product datasheet (OSRAM GmbH).

Datasheet Details

Part number	LBL29S
Manufacturer	OSRAM GmbH
File Size	641.70 KB
Description	Lead (Pb) Free Product
Datasheet	LBL29S_OSRAMGmbH.pdf
Additional preview pages of the LBL29S datasheet.

LBL29S Product details

Features

package: SMT package 0603, colorless diffused resin.
feature of the device: smallest package 1.7 x 0.8 x 0.65 mm (LxWxH).
wavelength: 470 nm (blue), 528 nm (true green).
viewing angle: horizontal 155°, vertical 135°.
technology: InGaN.
optical efficiency: 2 lm/W (blue), 7 lm/W (true green).
grouping parameter: luminous intensity, wavelength, forward voltage.
assembly methods: suitable for all SMT assembly methods.
