LGV196 - Lead (Pb) Free Product - RoHS Compliant

Product Overview

OSRAM GmbH

📥 Download Datasheet

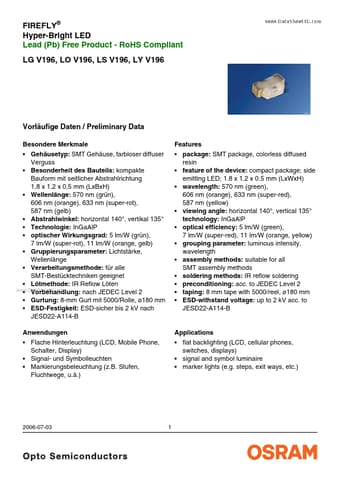

LGV196 Lead (Pb) Free Product - RoHS Compliant by OSRAM GmbH - Datasheet Preview — Datasheet preview – LGV196

Datasheet Details

Part number	LGV196
Manufacturer	OSRAM GmbH
File Size	616.42 KB
Description	Lead (Pb) Free Product - RoHS Compliant
Datasheet	LGV196 Datasheet
Additional preview pages of the LGV196 datasheet.

Product details

Features

package: SMT package, colorless diffused resin.
feature of the device: compact package; side emitting LED; 1.8 x 1.2 x 0.5 mm (LxWxH).
wavelength: 570 nm (green), 606 nm (orange), 633 nm (super-red), 587 nm (yellow).
viewing angle: horizontal 140°, vertical 135° technology: InGaAlP.
optical efficiency: 5 lm/W (green), 7 lm/W (super-red), 11 lm/W (orange, yellow).
grouping parameter: luminous intensity, wavelength.
assembly methods:.
