OH3141L - Unipolar Hall-effect

Datasheet Summary

Description

These Hall-effect switches are monolithic integrated circuits with tighter magnetic specifications, designed to operate continuously over extended temperatures to +150°C, and are more stable with both temperature and supply voltage changes.

Features

4V to 30V DC operation voltage.
Open-Collector sinking type.
50mA maximum sinking output current.
Reverse Polarity Protection.
Good temperature performance 3.

📥 Download Datasheet

OH3141L Unipolar Hall-effect by OUZHUO - Datasheet Preview — Datasheet preview – OH3141L

Datasheet Details

Part number	OH3141L
Manufacturer	OUZHUO
File Size	219.76 KB
Description	Unipolar Hall-effect
Datasheet	OH3141L Datasheet
Additional preview pages of the OH3141L datasheet.

📁 Similar Datasheet

OH3144 - Unipolar Hall Switch IC (ETC)
OH3144 - Small hysteresis Hall unipolar switch IC (WB)
OH360U - Hallogic Hall Effect Sendsors Type OH360U (ON Semiconductor)
OH360U - Hallogic Hall-Effect Sensors (TT)

Other Datasheets by OUZHUO

OH3144 - Unipolar Hall Effect Switch
OH3172X - Hall effect Latch
OH3020 - Unipolar Hall-effect
OH34 - Unipolar Hall IC
OH34N - Unipolar Hall IC
OH37 - Unipolar Hall-effect

Full PDF Text Transcription

Click to expand full text

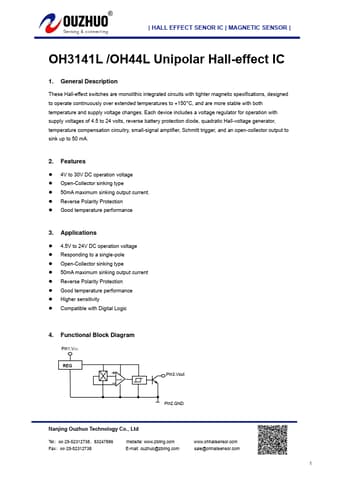

| HALL EFFECT SENOR IC | MAGNETIC SENSOR | OH3141L /OH44L Unipolar Hall-effect IC 1. General Description These Hall-effect switches are monolithic integrated circuits with tighter magnetic specifications, designed to operate continuously over extended temperatures to +150°C, and are more stable with both temperature and supply voltage changes. Each device includes a voltage regulator for operation with supply voltages of 4.5 to 24 volts, reverse battery protection diode, quadratic Hall-voltage generator, temperature compensation circuitry, small-signal amplifier, Schmitt trigger, and an open-collector output to sink up to 50 mA. 2. Features ⚫ 4V to 30V DC operation voltage ⚫ Open-Collector sinking type ⚫ 50mA maximum sinking output current.
