OHDMB-04

Magnetic Recognition Sensor

OHDMB-04 Features

* High stability and excellent SNR

* Contactless detection, stable output, and fast response

* Output voltage is independent of the moving speed of the magnetic objects

* Pure resistances act as sensing element Strong anti-interference capability

* Broaden detection width and low

OHDMB-04 General Description

OHDMB Series Magnetic Recognition Sensors are a magneto-dependent sensor with high sensitivity, which is also called magnetic heads. They are composed of semiconductor material indium stibnite (InSb) magnetic resistance chips and permanent magnet supplying InSb magnetic resistance chip bias. With ha.

OHDMB-04 Datasheet (283.14 KB)

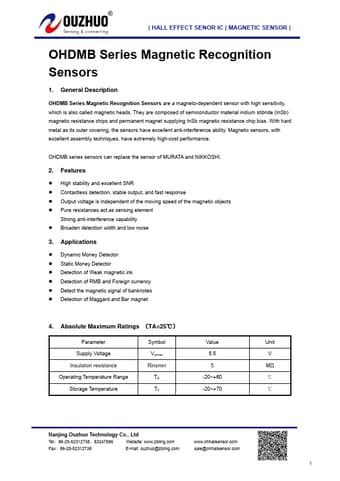

Preview of OHDMB-04 PDF

Datasheet Details

Part number:

OHDMB-04

Manufacturer:

OUZHUO

File Size:

283.14 KB

Description:

Magnetic recognition sensor.
