C1162 - 40-Bit Vacuum Fluorescent Display Tube Grid/Anode Driver

Datasheet Summary

Description

The MSC1162A is a monolithic IC designed for directly driving the grid and anode of the vacuum fluorescent display tube.

The device contains a 40-bit bidirectional shift register, a 40-bit latch circuit, and 40-output circuit on a single chip.

Features

  • Logic Supply Voltage (VCC) : 5V.
  • Driver Supply Voltage (VHV): 65V.
  • Driver Output Current IOHVH1 (Only one driver output : "H") :.
  • 40mA IOHVH2 (All the driver outputs : "H") :.
  • 2mA IOHVL:1mA.
  • Directly connected to VFD tube without pull-down resistors.
  • Data Transfer Speed: 4MHz.
  • Package : 60-pin plastic SSOP (SSOP60-P-700-0.65-BK) (Product name : MSC1162AGS-BK) 1/14 www. DataSheet4U. com ¡ Semiconductor MSC1162A BLOCK DIAGRA.

📥 Download Datasheet

Datasheet preview – C1162

Datasheet Details

Part number C1162
Manufacturer Oki
File Size 151.45 KB
Description 40-Bit Vacuum Fluorescent Display Tube Grid/Anode Driver
Datasheet download datasheet C1162 Datasheet
Additional preview pages of the C1162 datasheet.

📁 Similar Datasheet

  • C1162 - Silicon NPN Transistor (Renesas)
  • C1162 - NPN Plastic Encapsulated Transistor (SeCoS)
  • C1161 - Silicon NPN Transistor (SavantIC)
  • C1163 - Silicon NPN Transistor (SavantIC)
  • C1165 - Silicon NPN epitaxial planar type Transistor (Toshiba)
  • C1100G - DUAL SWITCHING REGULATOR CONTROLLER (NEC)
  • C1106 - Silicon NPN Transistor (SavantIC)
  • C11152 - HIGH VOLTAGE POWER SUPPLY (HAMAMATSU)
  • C11184 - WIDE BANDWIDTH AMPLIFIER UNIT (HAMAMATSU)
  • C1122A - Silicon NPN Transistor (ETC)
Other Datasheets by Oki

    Full PDF Text Transcription

    Click to expand full text

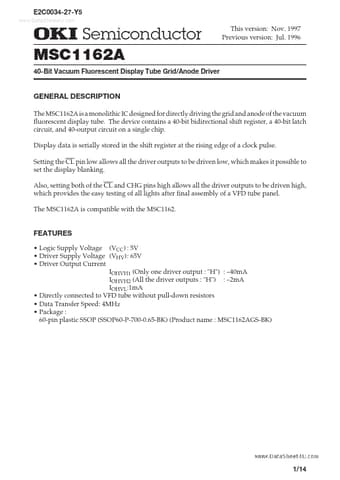

    E2C0034-27-Y5 www.DataSheet4U.com ¡ Semiconductor MSC1162A ¡ Semiconductor 40-Bit Vacuum Fluorescent Display Tube Grid/Anode Driver This version: Nov. 1997 MSC1162A Previous version: Jul. 1996 GENERAL DESCRIPTION The MSC1162A is a monolithic IC designed for directly driving the grid and anode of the vacuum fluorescent display tube. The device contains a 40-bit bidirectional shift register, a 40-bit latch circuit, and 40-output circuit on a single chip. Display data is serially stored in the shift register at the rising edge of a clock pulse. Setting the CL pin low allows all the driver outputs to be driven low, which makes it possible to set the display blanking.
