OV5647 color CMOS QSXGA (5 megapixel) image sensor

2 system level description 2.1 overview 2.2 architecture 2.3 format and frame rate 2.4 I/O control 2.4.1 system clock control 2.5 power up sequence 2.5.1 power up with internal DVDD 2.5.2 power up with external DVDD source 2.6 reset 2.7 standby and sleep 3 block level description 3.1 pixel array st.

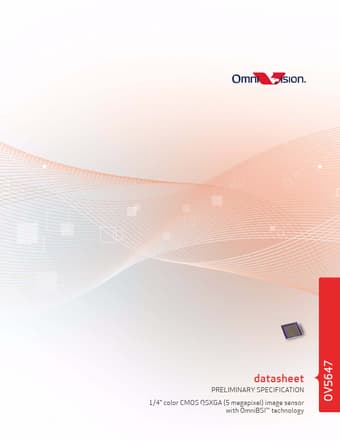

C on fide ntia l for truly O nly OV5647 datasheet PRELIMINARY SPECIFICATION 1/4" color CMOS QSXGA (5 megapixel) image sensor with OmniBSI™ technology C on fide ntia l for truly O nly C on fide ntia l for truly O nly 00Copyright © 2009 OmniVision Technologies, Inc. All rights reserved. This document is provided “as is” with no warranties whatsoever, including any warranty of merchantability, non-infringement, fitness for any particular purpose, or any warranty otherwise arising out of any pro.

OV5647 Features

* 1.4 µm x 1.4 µm pixel with OmniBSI technology for high performance (high sensitivity, low crosstalk, low noise) optical size of 1/4" automatic image control functions: automatic exposure control (AEC), automatic white balance (AWB), automatic band filter (ABF), automatic 50/60 Hz luminance det

OV5647 Datasheet (1.10 MB)
