OS08A10 - color CMOS 8 megapixel image sensor

OmniVision

The OS08A10 by OmniVision is a color CMOS 8 megapixel image sensor. Below is the official datasheet preview.

📥 Download Datasheet

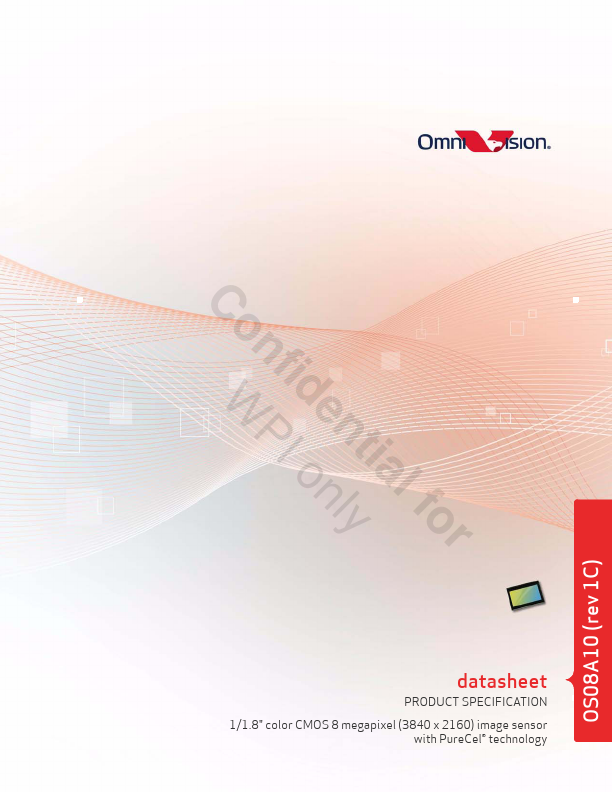

OS08A10 color CMOS 8 megapixel image sensor by OmniVision - Datasheet Preview — Official preview page of the **OS08A10** color CMOS 8 megapixel image sensor datasheet (OmniVision).

Datasheet Details

Part number	OS08A10
Manufacturer	OmniVision
File Size	1.69 MB
Description	color CMOS 8 megapixel image sensor
Datasheet	OS08A10-OmniVision.pdf

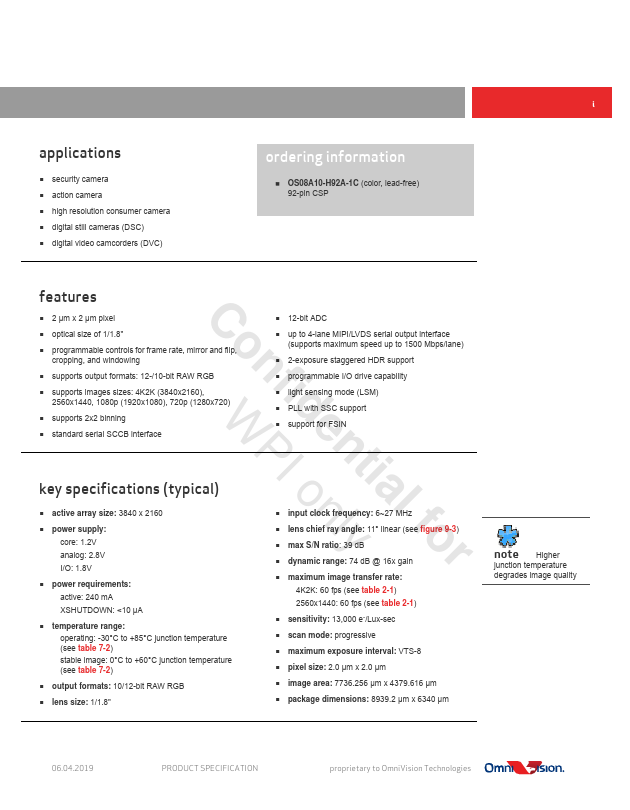

Additional preview pages of the OS08A10 datasheet.

OS08A10 Product details

Description

1-1 2 system level description 2-1 2.1 overview 2-1 2.2 architecture 2-1 2.3 format and frame 2-4 2.4 I/O control 2.5 MIPI interface C 2.6 LVDS interface 2.7 power management o 2.7.1 power up sequence n 2.7.2 power down sequence 2.8 reset fi 2.8.1 power ON reset d 2.8.2 software reset W e 2.9 hardware and software standby 2.9.1 hardware standby P n 2.9.2 software standby I t 2.10 system clock control o ia 2.10.1 PLL1 n l 2.10.2 PLL2 2.11 serial camera control bus (SCCB) interface ly 2

Features

C 2 µm x 2 µm pixel optical size of 1/1.8" o programmable controls for frame rate, mirror and flip, n cropping, and windowing supports output formats: 12-/10-bit RAW RGB fi supports images sizes: 4K2K (3840x2160), d 2560x1440, 1080p (1920x1080), 720p (1280x720) W supports 2x2 binning e standard serial SCCB interface 12-bit ADC up to 4-lane MIPI/LVDS serial output interface (supports maximum speed up to 1500 Mbps/lane) 2-exposure staggered HDR support programmable I/O drive capability light sens.
